ارتقاء آنالایزر شبکه برداری Nanovna V2 Plus4 50 کیلوهرتز-4 گیگاهرتز، آنالایزر آنتن 4 اینچی Aursinc، پارامترهای S اندازه گیری HF VHF UHF، نسبت موج ایستاده ولتاژ

توضیحات

[2022 ADVANCE NANOVNA] NANOVNA V2 (SAA-2) Plus4 یک تحلیلگر شبکه برداری انتقال/انعکاس 4 گیگاهرتز است که ضریب انعکاس S11 و ضریب انتقال S21 یک شبکه فرکانس بالا را اندازه گیری می کند. Plus4 VNA محافظ بهبود یافته ای دارد که با یک محفظه آلومینیومی به محدوده دینامیکی بالایی دست می یابد. [note] پس از دریافت دستگاه، لطفاً سفت‌افزار را به‌روزرسانی کنید و نسخه CONFIG > را در منو بررسی کنید. لطفاً برای به روز رسانی نرم افزار/سیرم افزار/سخت افزار به لینک زیر مراجعه کنید: nanorfe.com/nanovna-v2-user-manual.html

ویژگی‌ها:

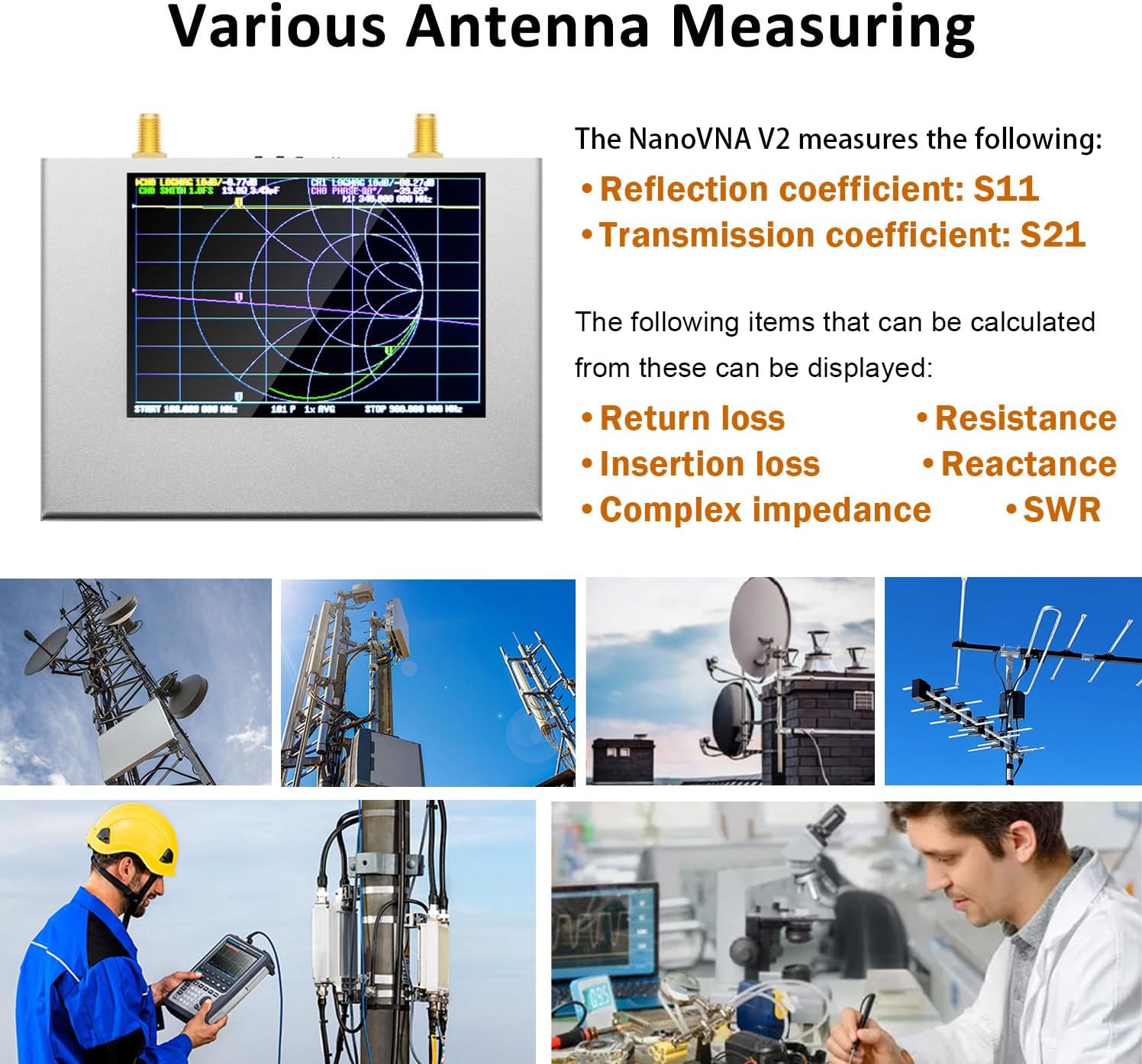

• [2022 NANOVNA Advanced] Original NANOVNA V2 Plus4 (SAA-2) is a 4GHz transmission/reflection vector network analyzer that measures the S11 reflection coefficient and S21 transmission coefficient of a high-frequency network; Not only testing the standing wave impedance of the antenna, but also testing the duplex, filter insertion loss, insulation and cable attenuation test, shorten coefficient, phase, amplification of the antenna amplifier

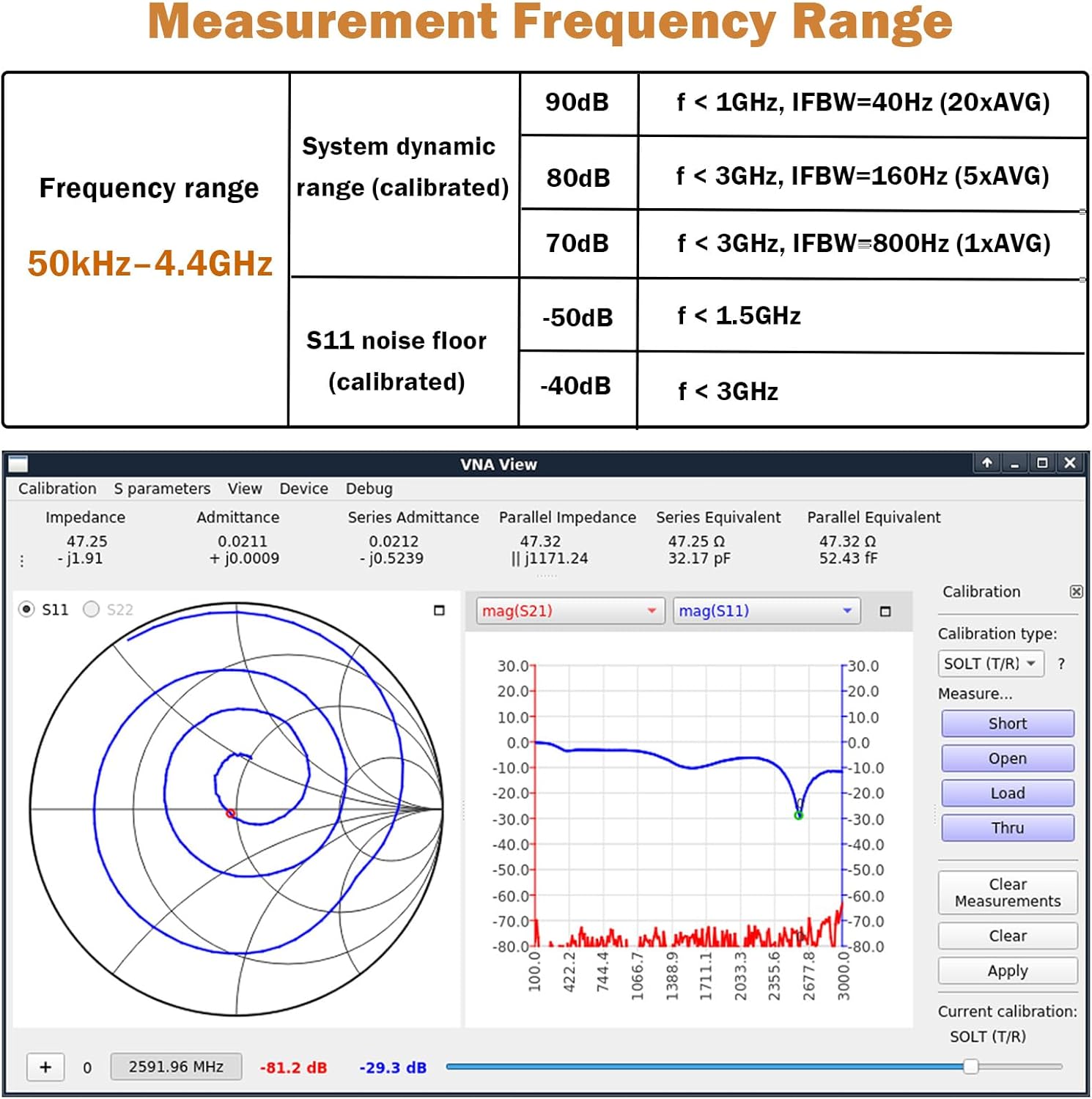

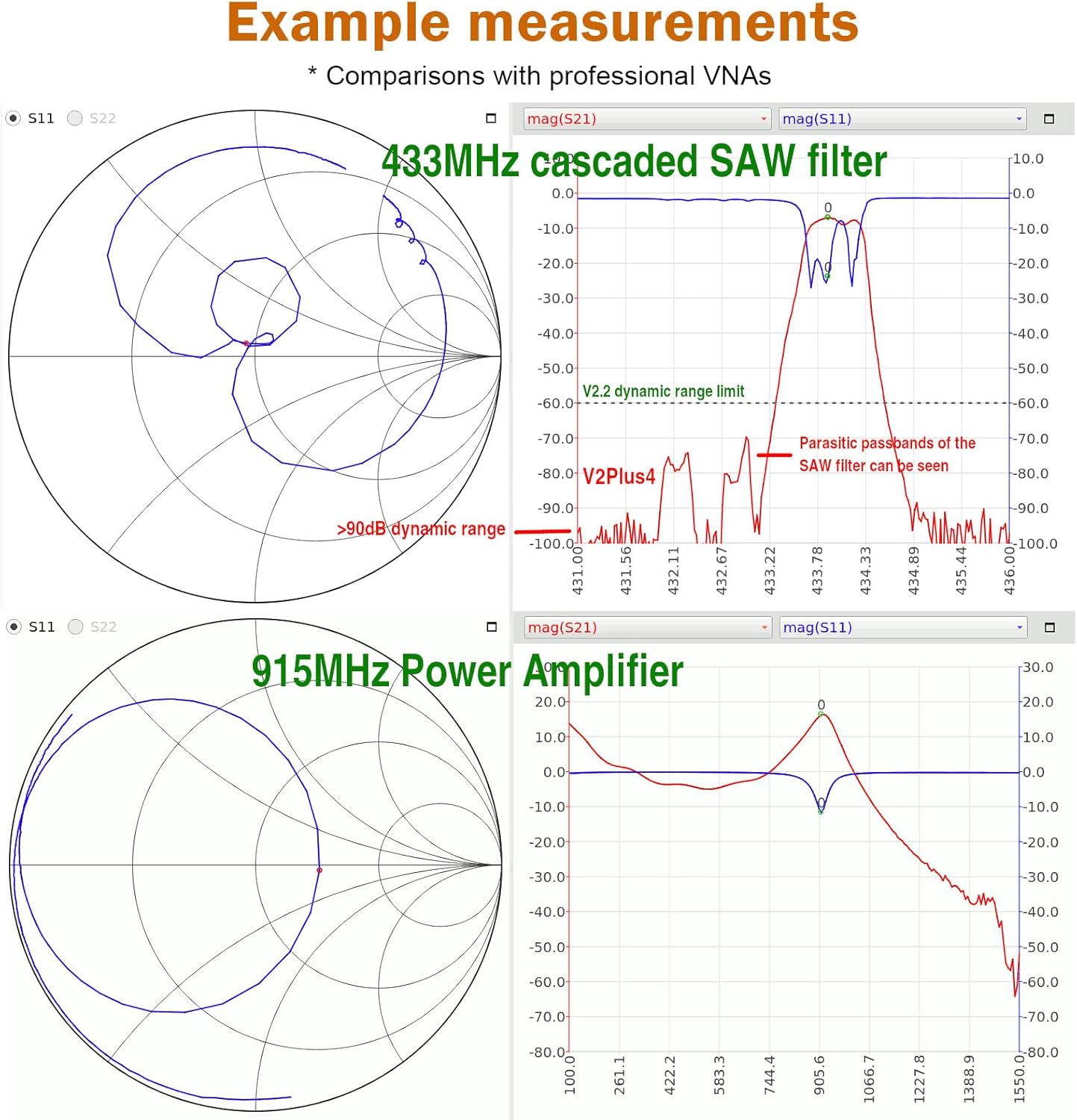

• [Ultra-wide frequency range] Compared with previous NanoVNAs (10khz-1.5/3ghz), the AURSINC NanoVNA V2 vector network analyzer provides 50KHz-4GHz ultra-wide frequency range with better precision and accuracy; Furthermore, the system dynamic range for this VNA is up to a dynamic range of 90dB (1GHz) and up to a dynamic range of 80dB (3GHz); Plus4 VNA has improved shielding that achieves high dynamic range with an aluminum enclosure

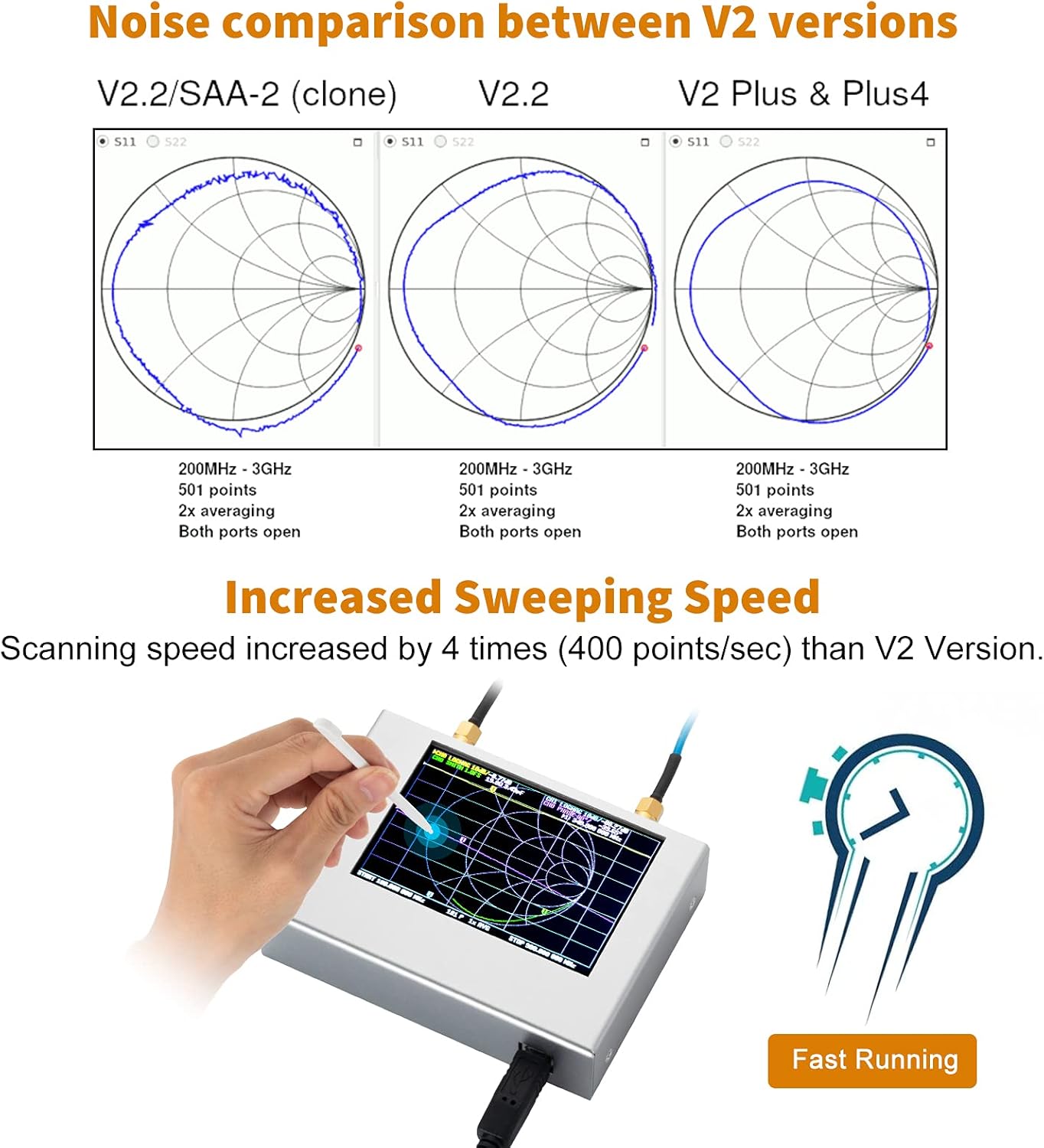

• [Upgraded Performance] The scanning speed of the NanoVNA V2 antenna analyzer increases by 4 times (400 points/sec) compared to previous versions of V2. Flip the screen, for convenience, you can do it as follows: Menu - view - flip the screen

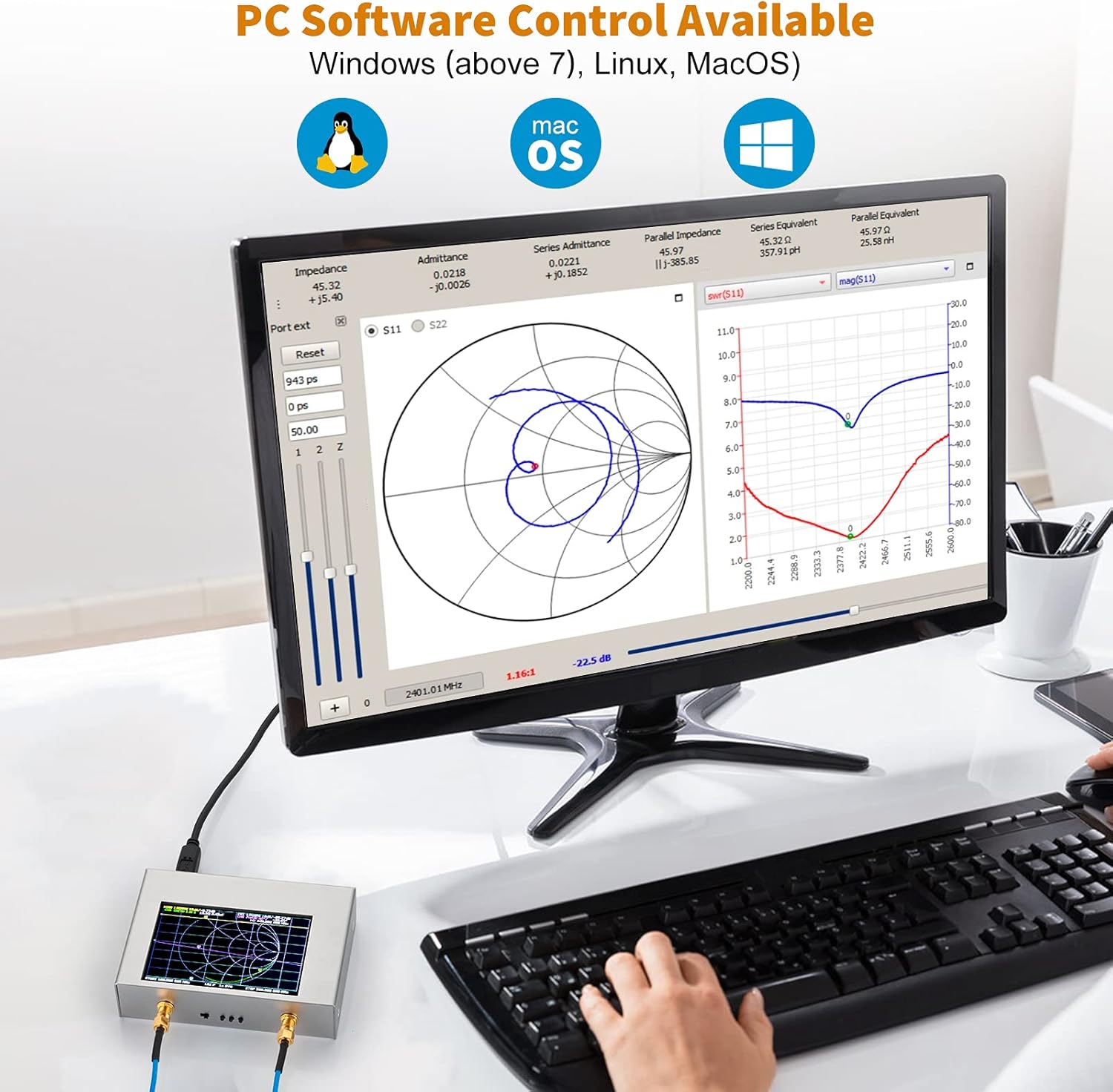

• [Support PC control]Support PC software control, such as Windows(above 7), Linux, MacOS, VNA can be more compatible with PC and antenna measurements, when measuring frequency. Works well with a computer to print standing wave reports, Smith charts, and other antenna-related information in various frequency ranges
• [Larger Capacity Rechargeable Battery] The new network vector analyzer is equipped with a 3200mAh/ 3.7v rechargeable lithium battery with charger running time and battery life. There are also LED battery charge indicators on the back of the VNA which are the battery fuel gauge, the one closest to the ch1 port fitting is the lowest charge level indicating 25%

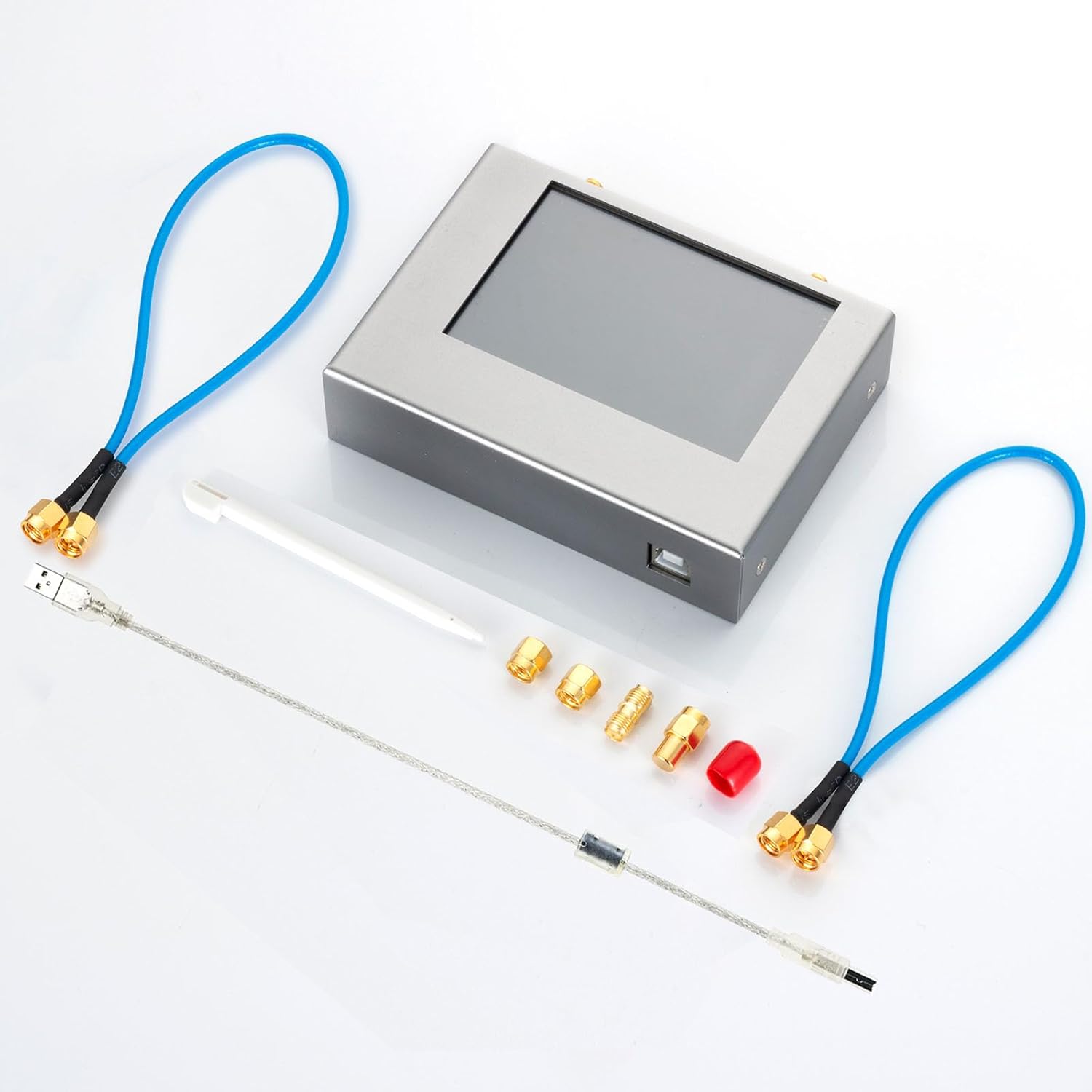

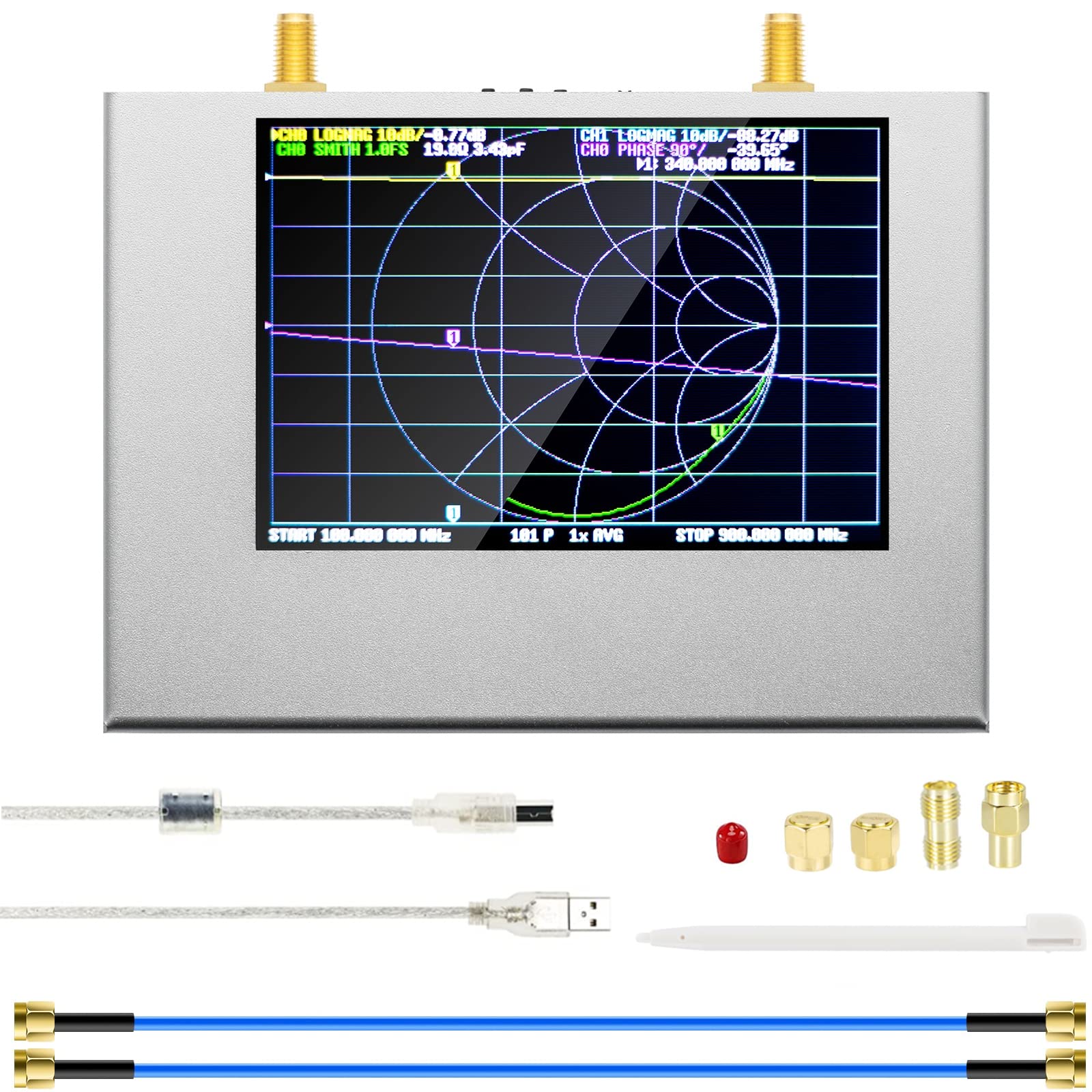

• [Original Nanovna V2 Plus4] AURSINC NanoVNA V2 Plus4 is the original edition (if you buy the clone one, the VNA can't proceed to the official website software update) NanoVNA V2 Plus4 V2.4 comes with a 4-piece calibration set - open, short, load, & thru, two SMA male cables, one USB2-B to USB2-A cable (black or silver), and a stylus to operate the touchscreen menu and markers

مشخصات محصول:

• Brand: ‎AURSINC
• Producer: ‎AURSINC
• Model: ‎NanoVNA V2 PLUS4
• Product dimensions: ‎22.1 x 13.97 x 3.99 cm; 450 grams
• Stacks: ‎1 Metal Lithium batteries required. (included)
• Item model number: ‎NanoVNA V2 PLUS4
• Item number: ‎nanovna v2 plus4
• Are batteries/batteries included?: ‎Yes
• Batteries/batteries required: ‎Yes
• Cell composition of the cell/battery: ‎Lithium ions
• Material: ‎Aluminium
• Item weight: ‎450 g
• Guaranteed software updates up to: ‎unknown
• ASIN: B09NN4QQ55
• Average reviews: 4.6 4.6 out of 5 stars 5 ratings 4.6 out of 5 stars
• Position in the Amazon Bestsellers ranking: n. 524,240 in Electronics (View the Top 100 in the Electronics category) n. 59 in SWR Meter
• Shipping Restrictions: Shipping: This item complies with export regulations to selected countries outside the European Union.
• Available on Amazon.it starting from: June 15, 2022
• Antenna: Radio
• Brand: AURSINC
• Color: white
• Number of channels: 2
• Impedance: 4 Ohms
• Producer: AURSINC
