آنالایزر آنتن Seesii NanoVNA-F V3، تحلیلگر شبکه برداری 4.3 اینچی 1MHz-6GHz HF VHF UHF برای پارامترهای S ولتاژ، SWR، فاز، تاخیر، نمودار اسمیت

توضیحات

از فروشگاه Seesii دیدن کنید

ویژگی‌ها:

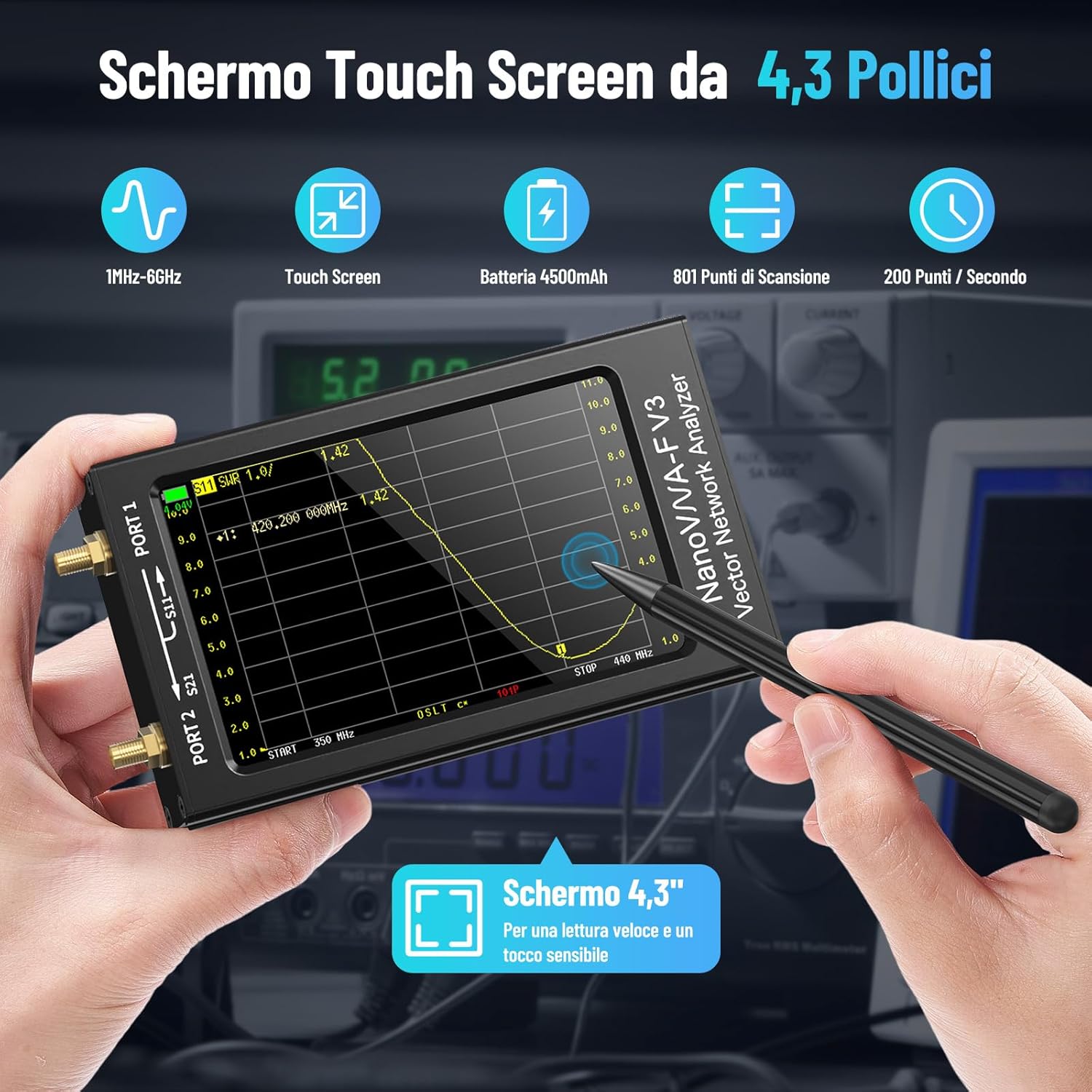

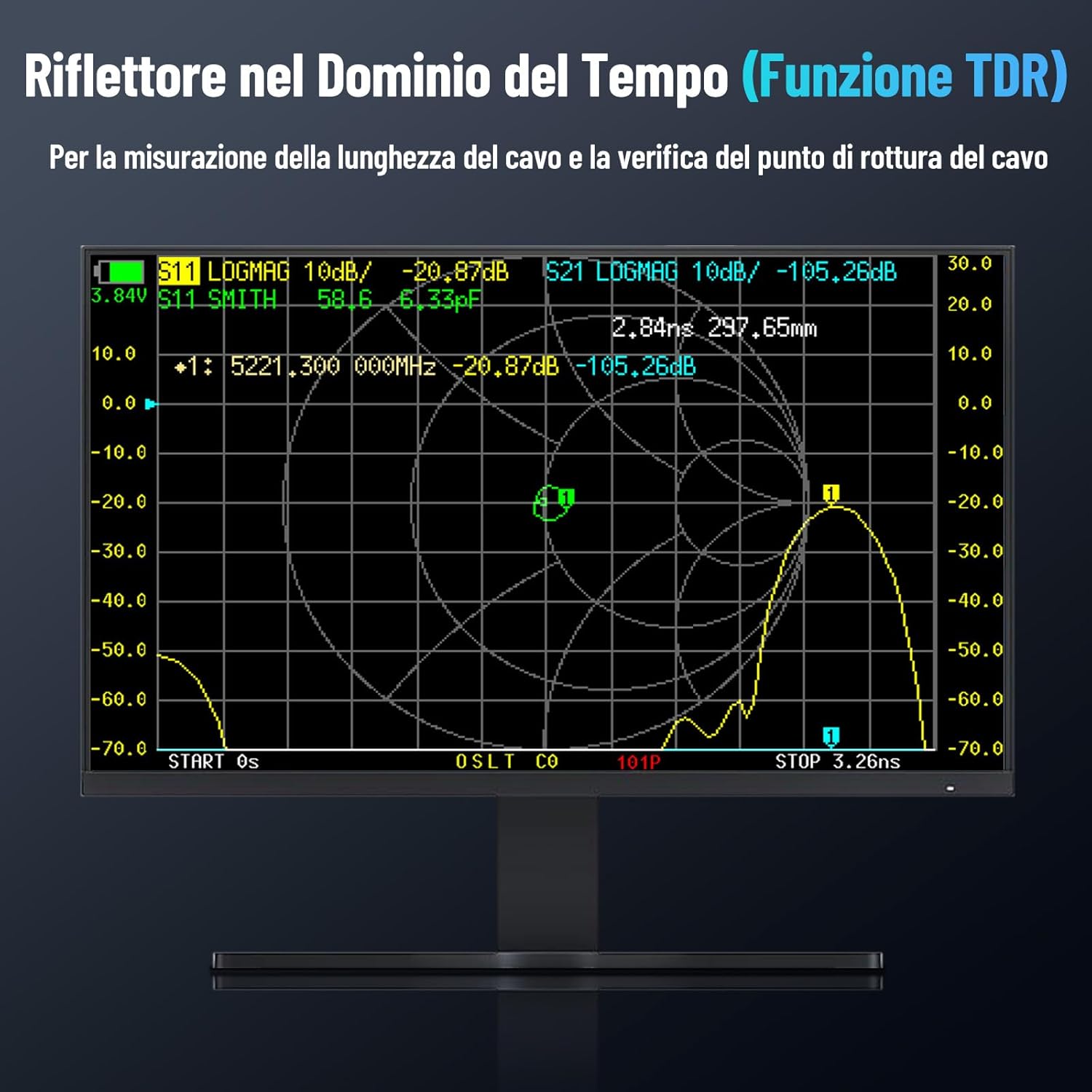

• 👉【Improved Performance】: This NanoVNA-F V3 vna analyzer is a new production machine in 2023. It has a 4.3 inch (800 x 480) touch screen display, a wide measuring range of 1MHz - 6GHz, the scanning speed of the NanoVNA-F V3 is up to 200 points/six maximum scanning points is 801. In addition, The NanoVNA analyzer supports TDR function, which is useful for measuring cable length.

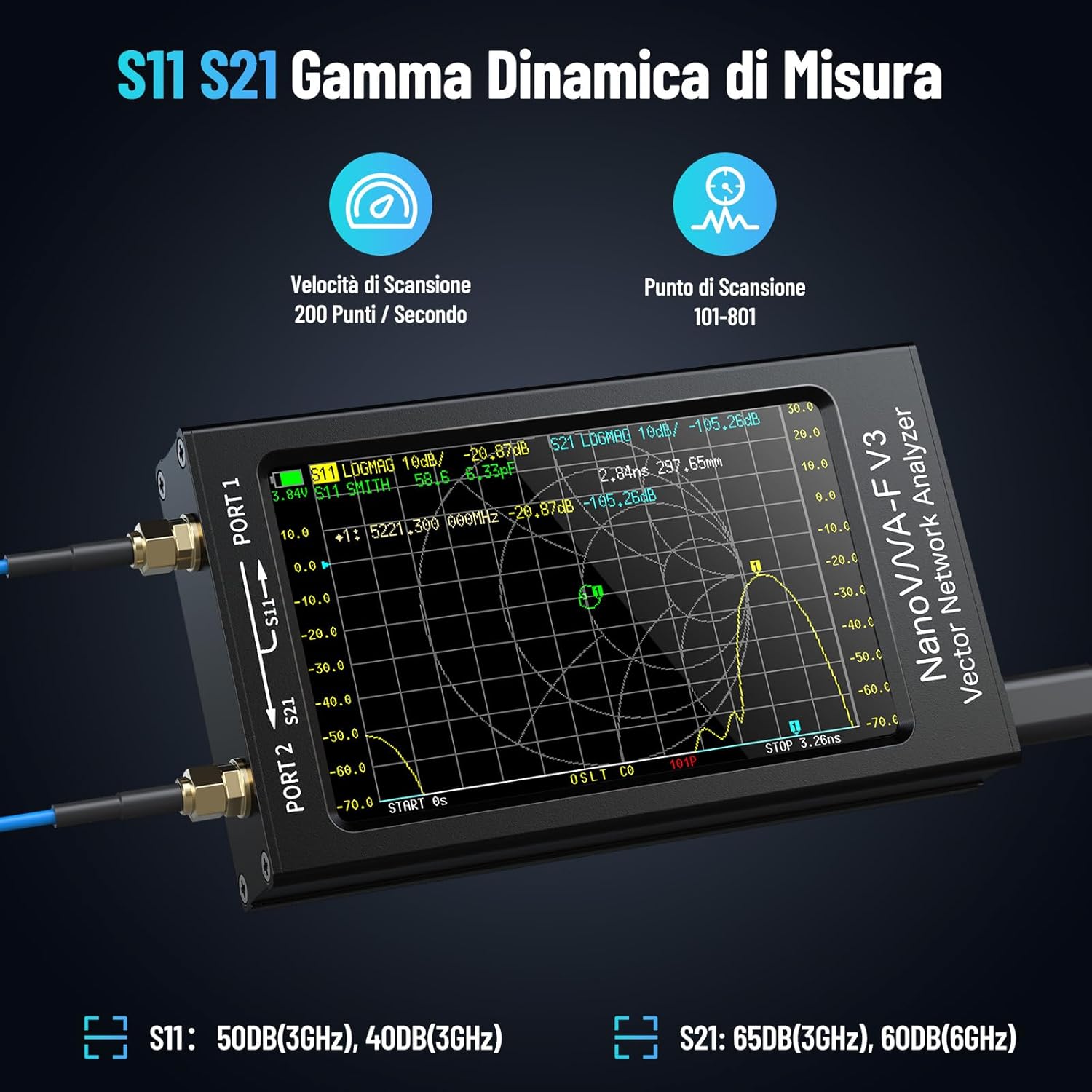

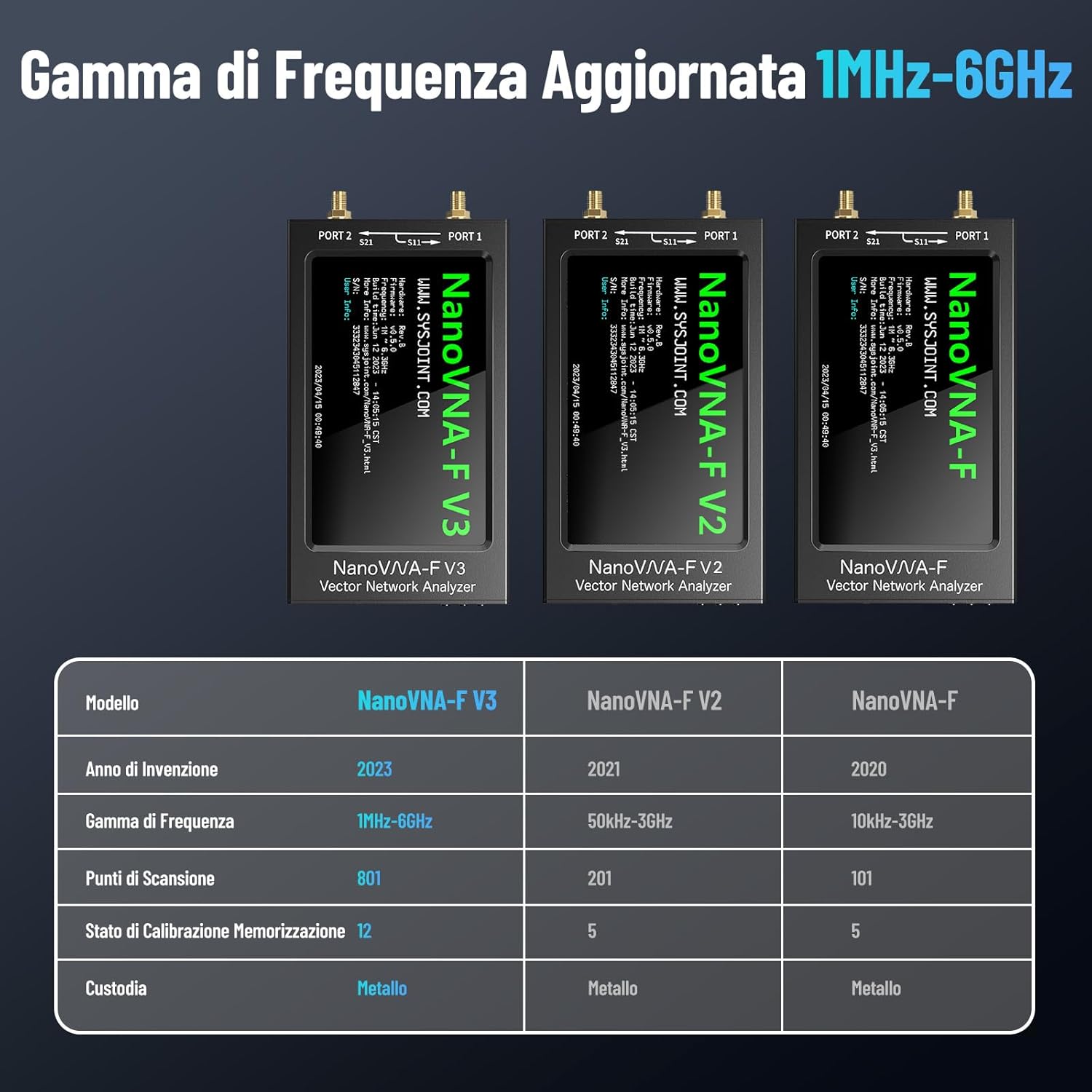

• ✅【Wide Frequency Range】: The upgraded Nanovna-F V3 has an ultra-wide measurement frequency range from 1MHz to 6GHz. The S21 dynamic range of the NanoVNA-F V3 is 65dB, while the S11 dynamic range is 50dB. The scan points are up to 101-801 and the calibration result storage is 12, to cover the entire low or high frequency range. With faster and more precise measurement performance, you can easily tackle measurement tests in various fields.

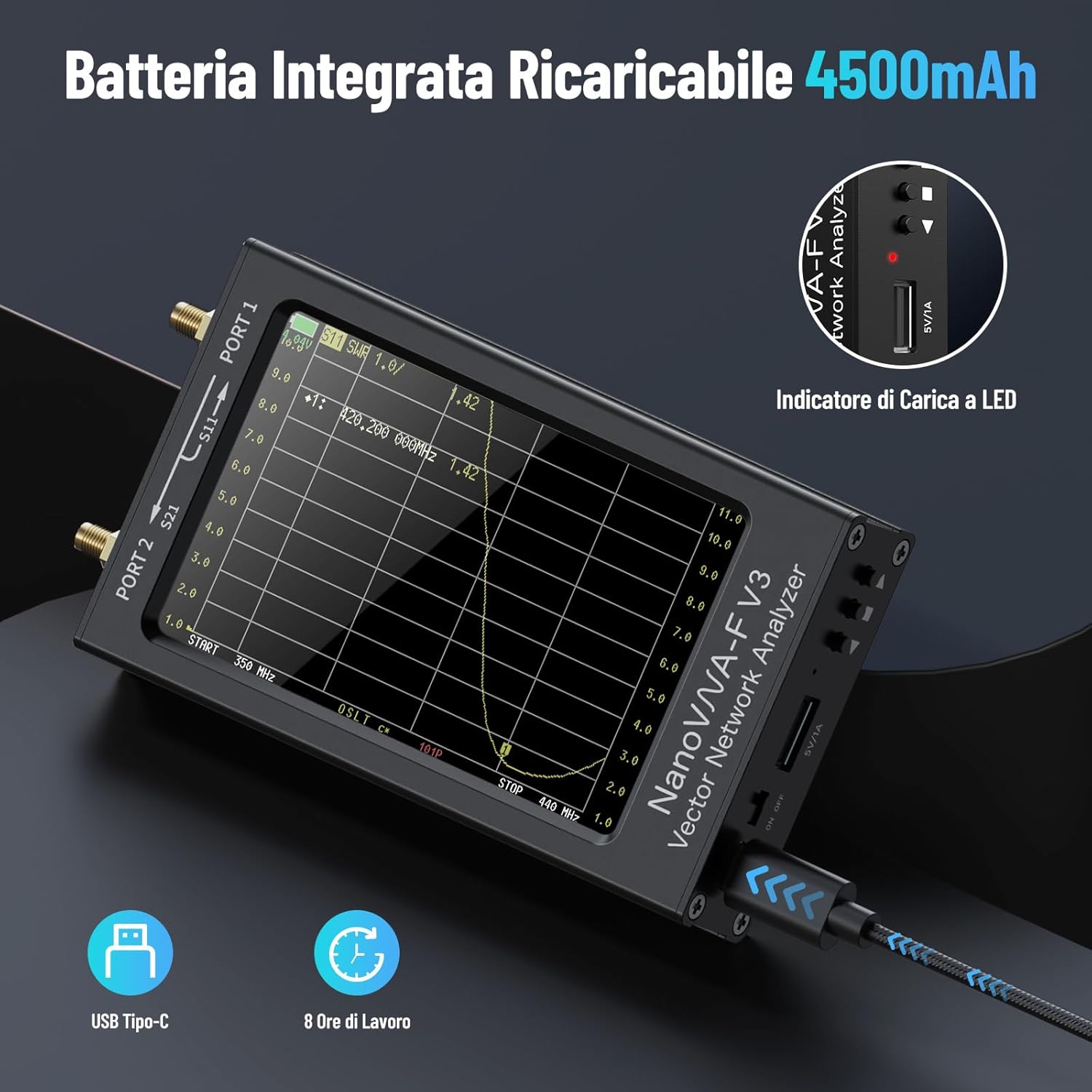

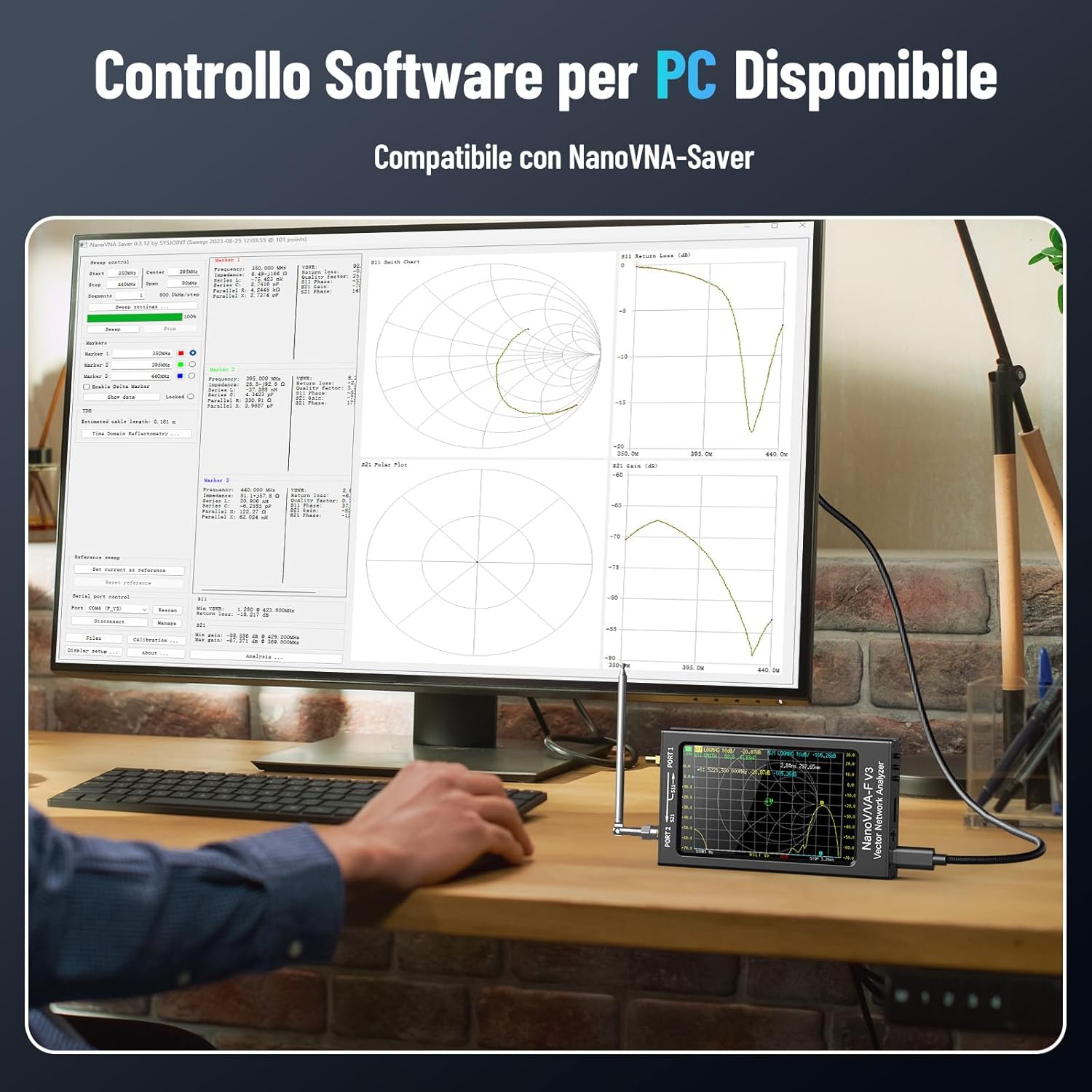

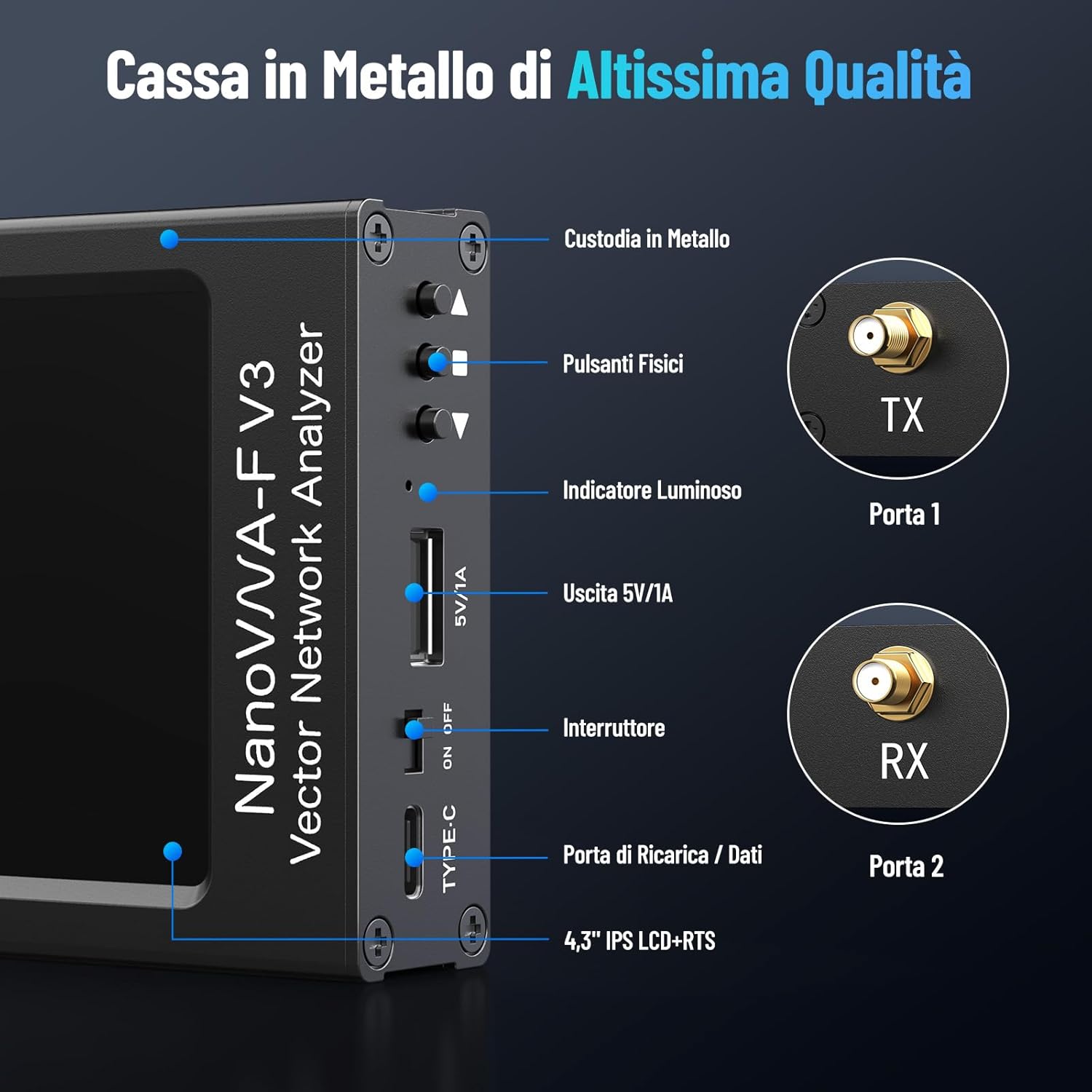

• 👍【Reliable Quality】: This nano vna analyzer measuring instrument is made of metal material, durable and can effectively shield electromagnetic interference. The SMA connector can be used to connect DUTs directly. Furthermore, it supports PC software control and is NanoVNA-Saver for convenient measurement data transfer. Built-in 4500mAh rechargeable battery and Type-C cable. It can be fully charged in 3 hours.
• 🎖️【Multiple Measurement Functions】: The Seesii NanoVNA-F V3 antenna analyzer is suitable for testing antennas in the MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components.

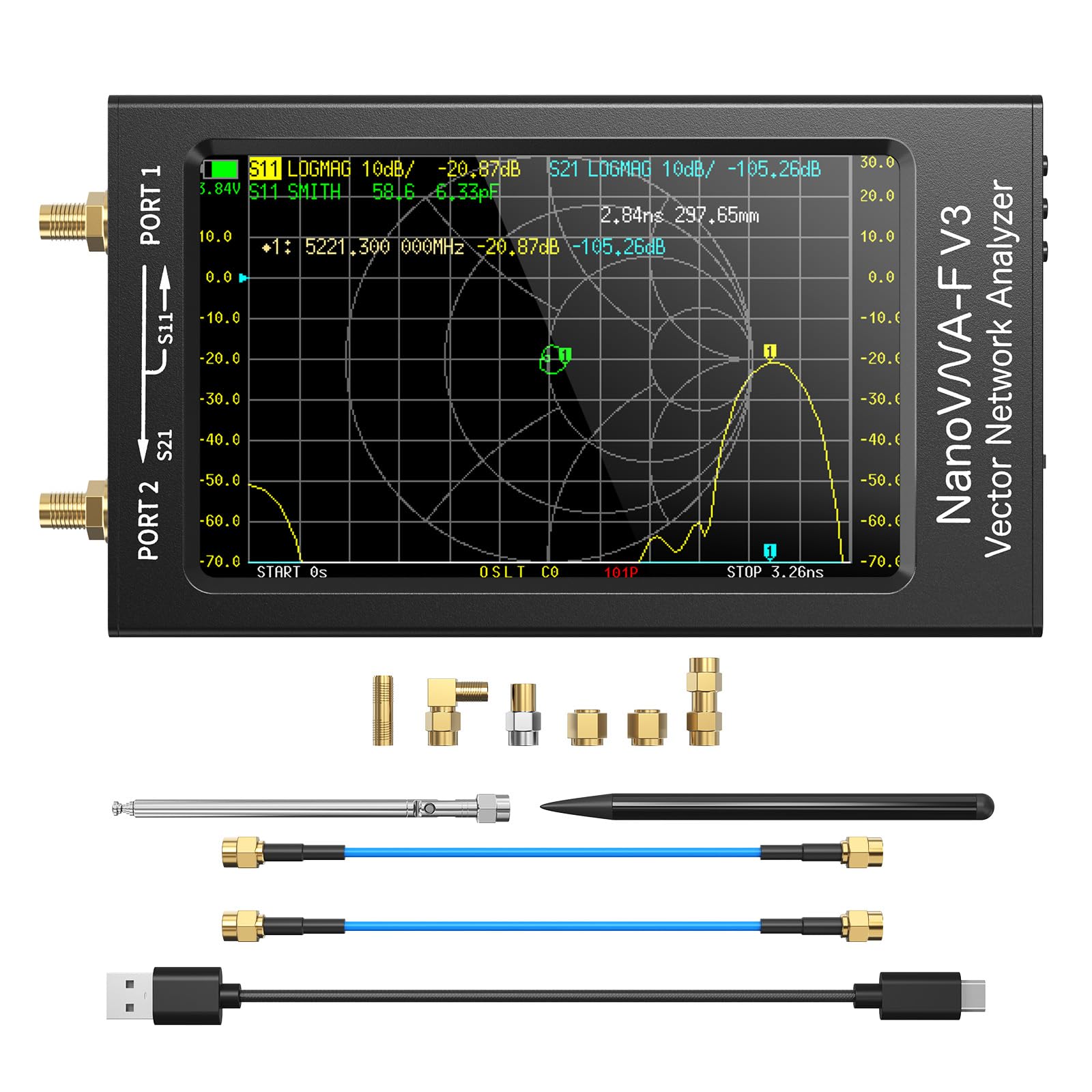

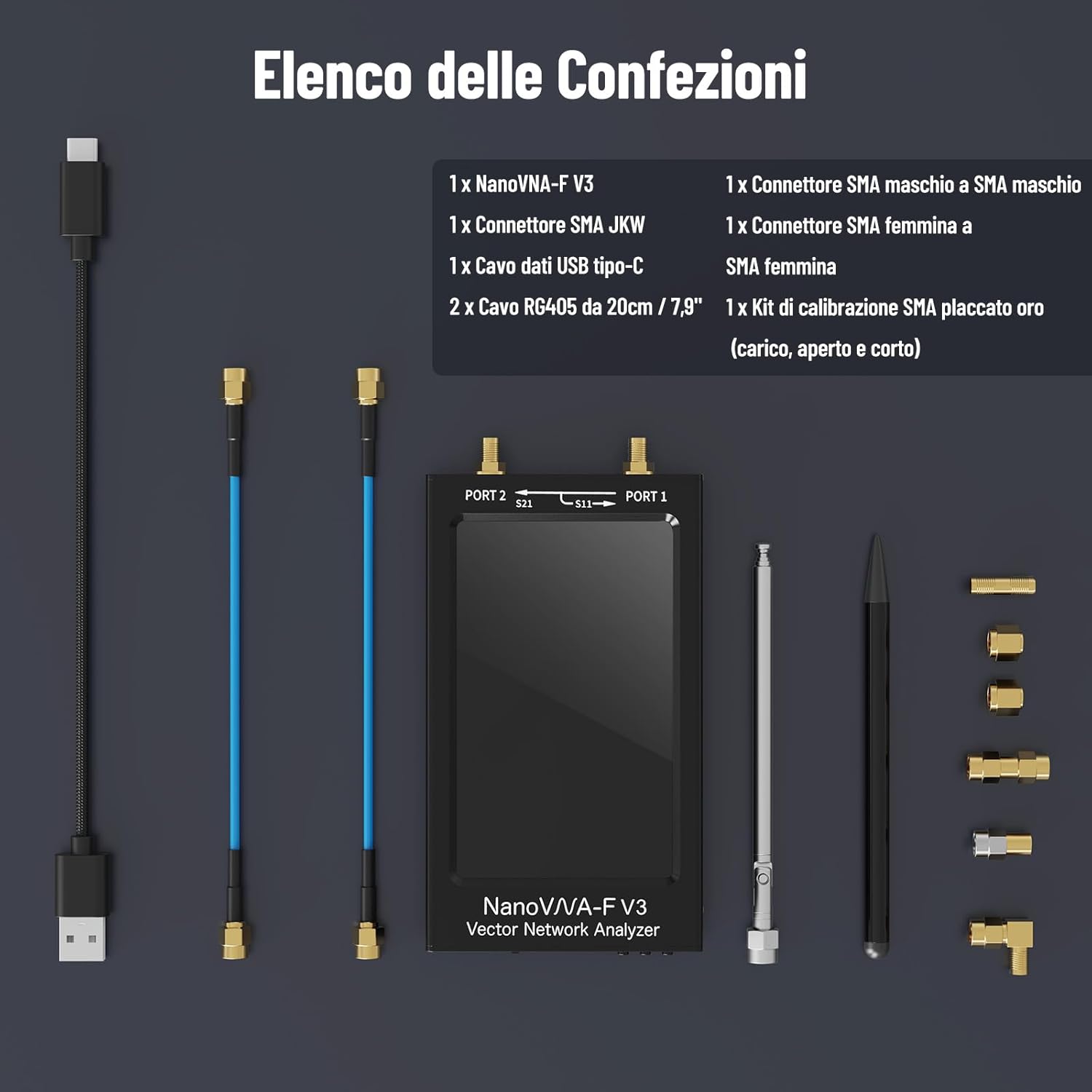

• 🎁【What You Will Get】: Seesii Nanovna-F V3 kit includes 1 x NanoVNA-F V3, 1 x Gold-plated SMA Calibration Kit (LOAD, OPEN and SHORT), 1 x SMA female to SMA female connector, 1 x SMA male to SMA male connector, 1 x SMA JKW connector, 2 x RG405 20 cables cm/7.9", 1 x USB Type-C Cable. Seesii provides 7*24 hours technical service and lifetime customer support with 1 year warranty. You can use it with confidence.

مشخصات محصول:

• Brand: ‎Seesii
• Producer: ‎Seesii
• Model: ‎NanoVNA-F V3
• Model name: ‎NanoVNA-F V3
• Neck size: ‎25.1 x 15.49 x 5 cm; 599 grams
• Stacks: ‎1 Product Specifications Batteries Required. (included)
• Item model number: ‎NanoVNA-F V3
• Item number: ‎NanoVNA-F V3
• Compatible peripherals: ‎Desktop computer, Laptop computer
• Additional features: ‎Portable
• Components included: ‎1 x NanoVNA-F V3, 1 x Gold-plated SMA Calibration Kit (LOAD, OPEN and SHORT), 1 x SMA female to SMA female connector, 1 x SMA male to SMA male connector, 1 x SMA JKW connector, 2 x 20cm/7.9" RG405 cables, 1 x USB Type-C cable
• Number of articles: ‎1
• Are batteries/batteries included?: ‎Yes
• Batteries/batteries required: ‎Yes
• Cell composition of the cell/battery: ‎NiMH
• Material: ‎Metal
• Form factor: ‎Handheld
• Installation type: ‎Support with clip
• Contains liquids: ‎No
• Rechargeable battery/battery included: ‎Yes
• Item weight: ‎599 g
