Aursinc Tinysa Ultra+ ZS406 SPECRUM Analyzer با کاهش 50W ، 100kHz-5.4GHz 4 اینچ آنالایزر فرکانس قابل حمل با کارت 32 گیگابایتی ، 2 در 1 MF/HF/VHF ET ADVANNUATER 25W سیگنال ورودی.

توضیحات

از فروشگاه AURSINC دیدن کنید

ویژگی‌ها:

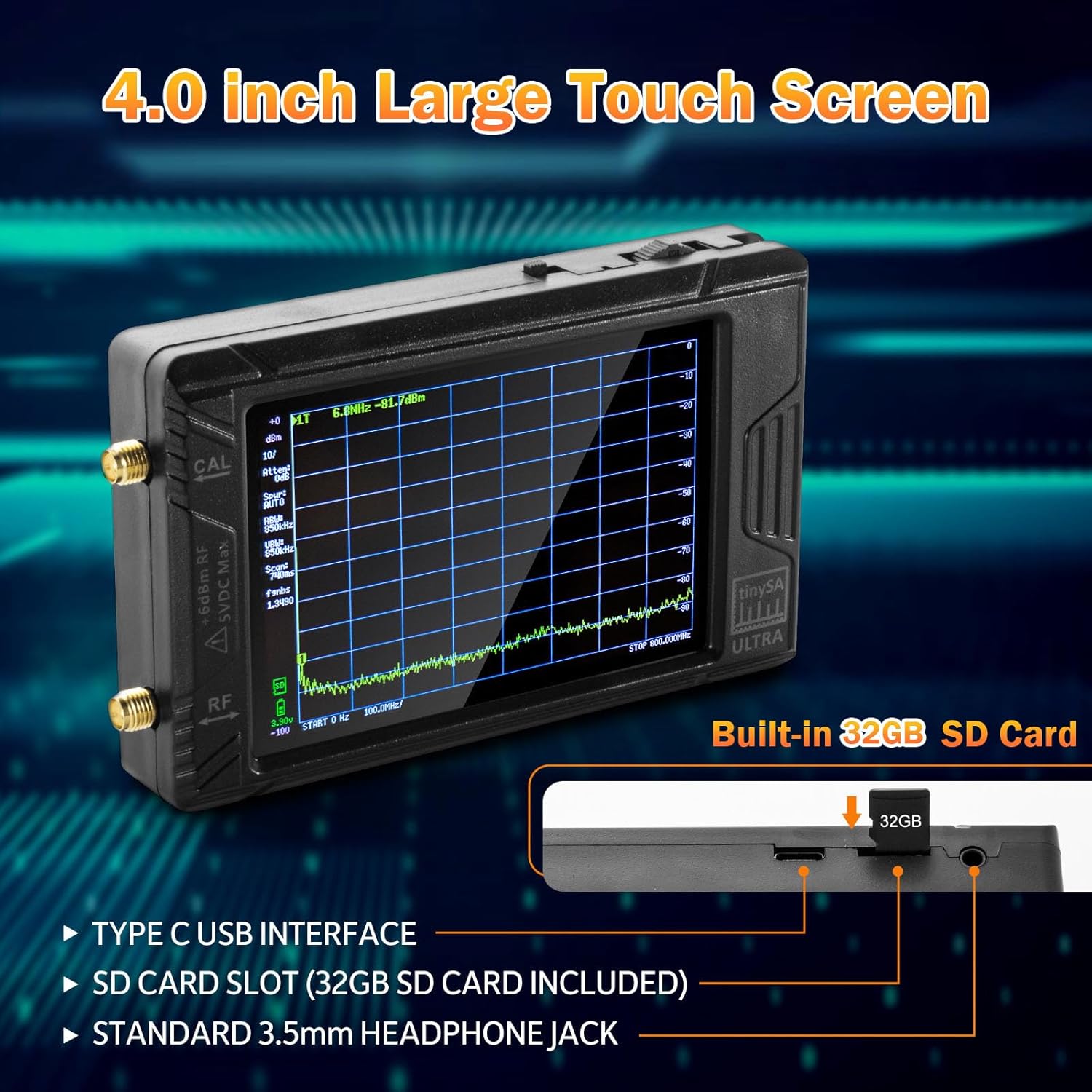

• [Tinysa Ultra updated] Tinysa Ultra developed by Hugen, HW V0.4.6. With 4 -inch touch screen (480*320 pixel resolution), the Tinysa Ultra spectrum analyzer has an Ultra 100khz measuring interval to 5.4GHz, a 32GB micro SD card integrated for transfer and storage of data. Linear feeding to avoid switching disorders

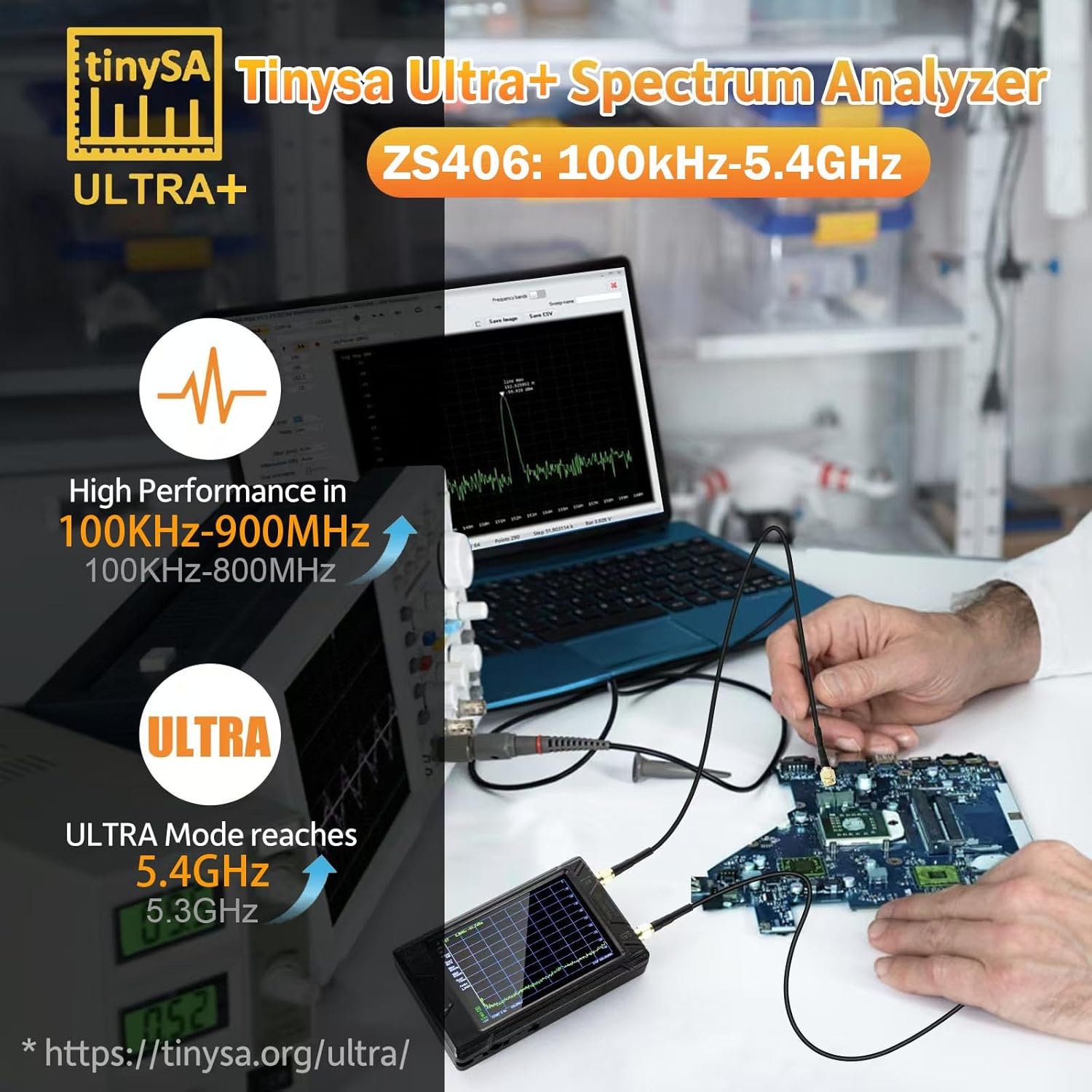

• [Frequency range] Tiny knows Ultra from 100 kHz to 5.4GHz: the spectrum analyzer for 0.1 MHz-900 MHz, with the ultra enabled mode, a calibrated level up to 6 GHz, can observe signals up to 12 GHz. Band filters with commutable resolution from 200 Hz to 850 khz. Measurement tests can be performed quickly and accurately
• [PC operation] connected to a PC via USB. The USB interface implements the CDC protocol and a large set of controls is available that can be recalled through the serial interface. These commands can be used to perform meas or update internal settings. Tinysa-App transfers the data directly to the computer. The driver for Windows will be installed automatically after connection to a Windows PC. The Linux driver is integrated into the kernel
• [Device 2 in 1] When it is not used as a spectrum analyzer, it can be used as a signal generator, Sinusoidal exit MF/HF/VHF between 100kHz-800mHz, UHF quadra wave between 800mHz-4,4GHz, output of the mixing signal between 4.4GHz- 5.4 GHz. Integrated calibration generator used for automatic self -test and low -entry calibration. Tinysa Ultra contains all the components of a conventional heterodine spectrum analyzer

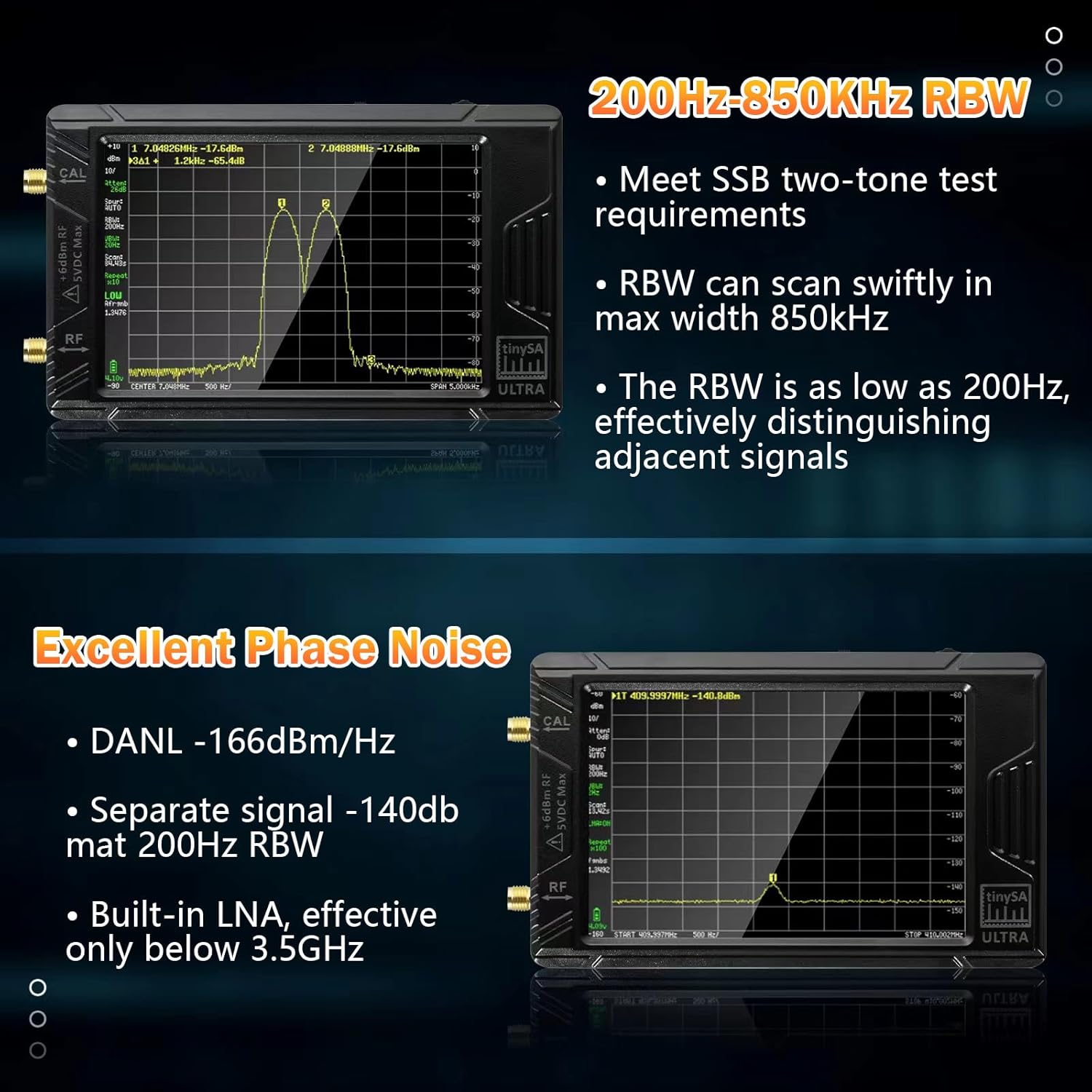

• [Features] The RBW is low up to 200 Hz, which can effectively distinguish adjacent signals and meet the requirements of the Double Satellite SSB intermodation test. Attenuator of the entrance step from 0 dB to 31 dB (not usable not in combination with LNA). In addition, with the new ESD protection function, the product has a higher antistatic level and longer duration

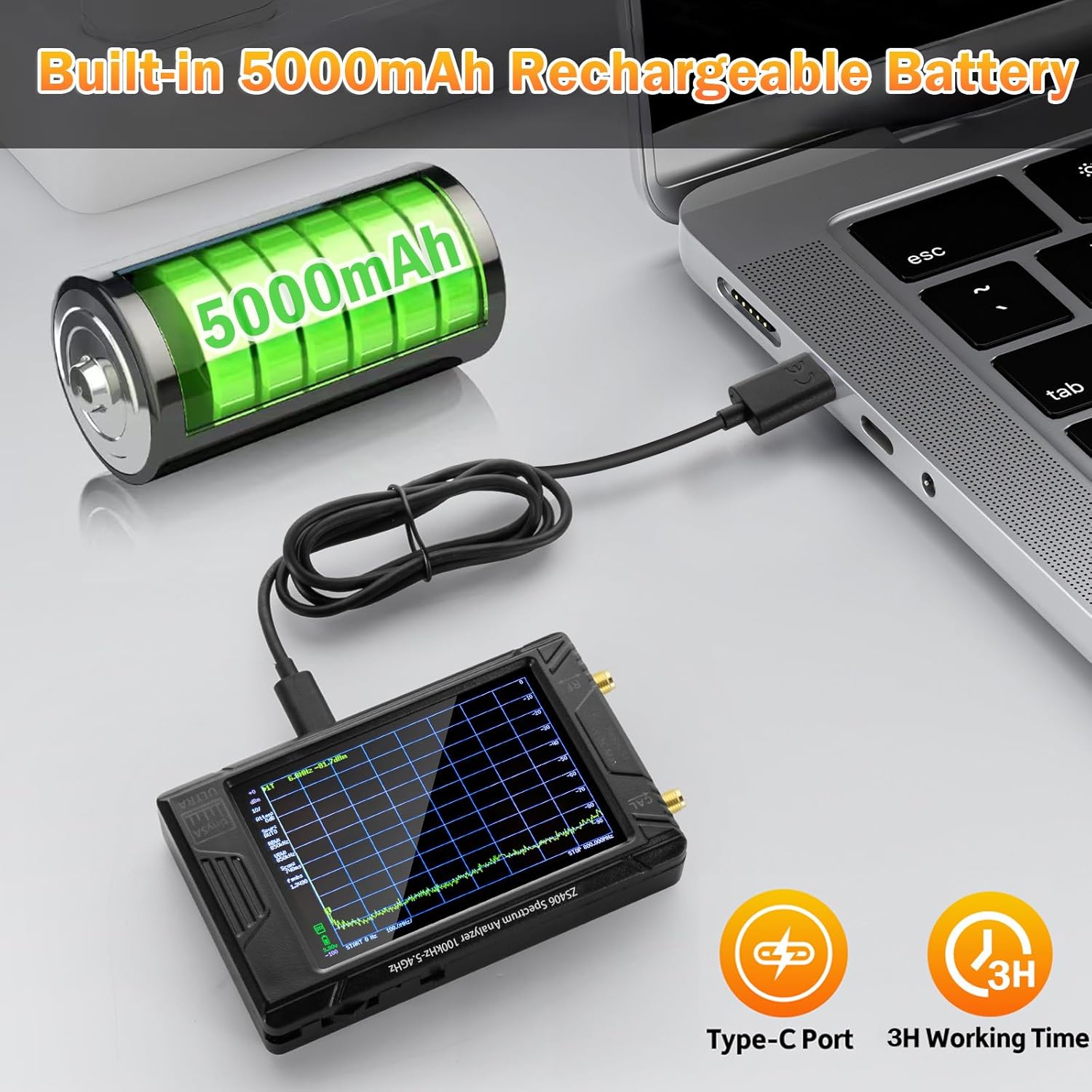

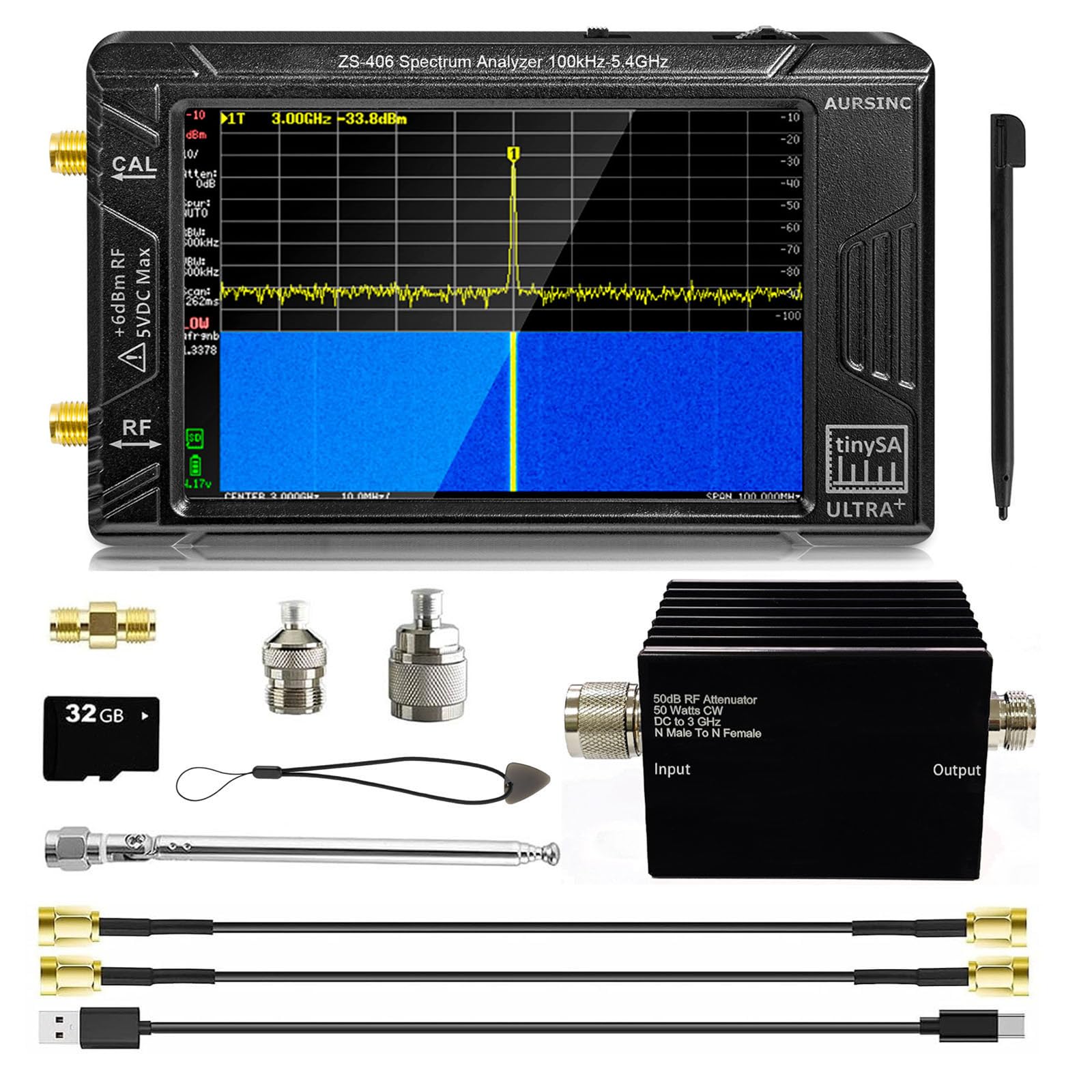

• [What you get] 1x Tinysa Ultra spectrum analyzer (4 -inch touchscreen, 5000 mAh rechargeable battery); 1 25 W attenuator; 2 SMA ALSR100 SMA cables of 30 cm; 1 type C USB data cable; 1x SMA-SSA cylindrical connector; 1x Tlanyard and Plectrum Touch; 1x antenna with SMA connector; 1x 32 GB microSD card (connected to the host), 1x Penna Stilo
• [Specifications of the RF mitigator] The 25 W attenuator maintains the signal at the right level, preventing overload, compression of the gain and distortion. DC-3GHz RF mitigator 25W Fixed coaxial mitigator 10 dB with N-Maschio connector to N-feminine. ROS: ≤ 1.20. Impedance: 50 ohm. Precision (DB): ± 1.0

مشخصات محصول:

• Pile: 1 lithium -pile polymer needed. (included)
• Out of production: No
• Product size: 11.7 x 7.2 x 2.3 cm; 177.77 grams
• Available on Amazon.it starting from: November 14, 2023
• Producer: Aursinc
• Donkey: B0C7VGVXWT
• Article model number: Et Atténuateur 25W
• Country of origin: China
• Position in Amazon's bestseller ranking: View top 100 in the electronic category
