AURSINC NanoVNA-F V2 آخرین آنالایزر شبکه وکتور 50KHz-3GHz HF VHF UHF VNA 4.3 اینچ آنتنالایزر LCD – اندازه گیری پارامتر S، فاز، تاخیر، نمودار اسمیت

توضیحات

از فروشگاه AURSINC دیدن کنید

ویژگی‌ها:

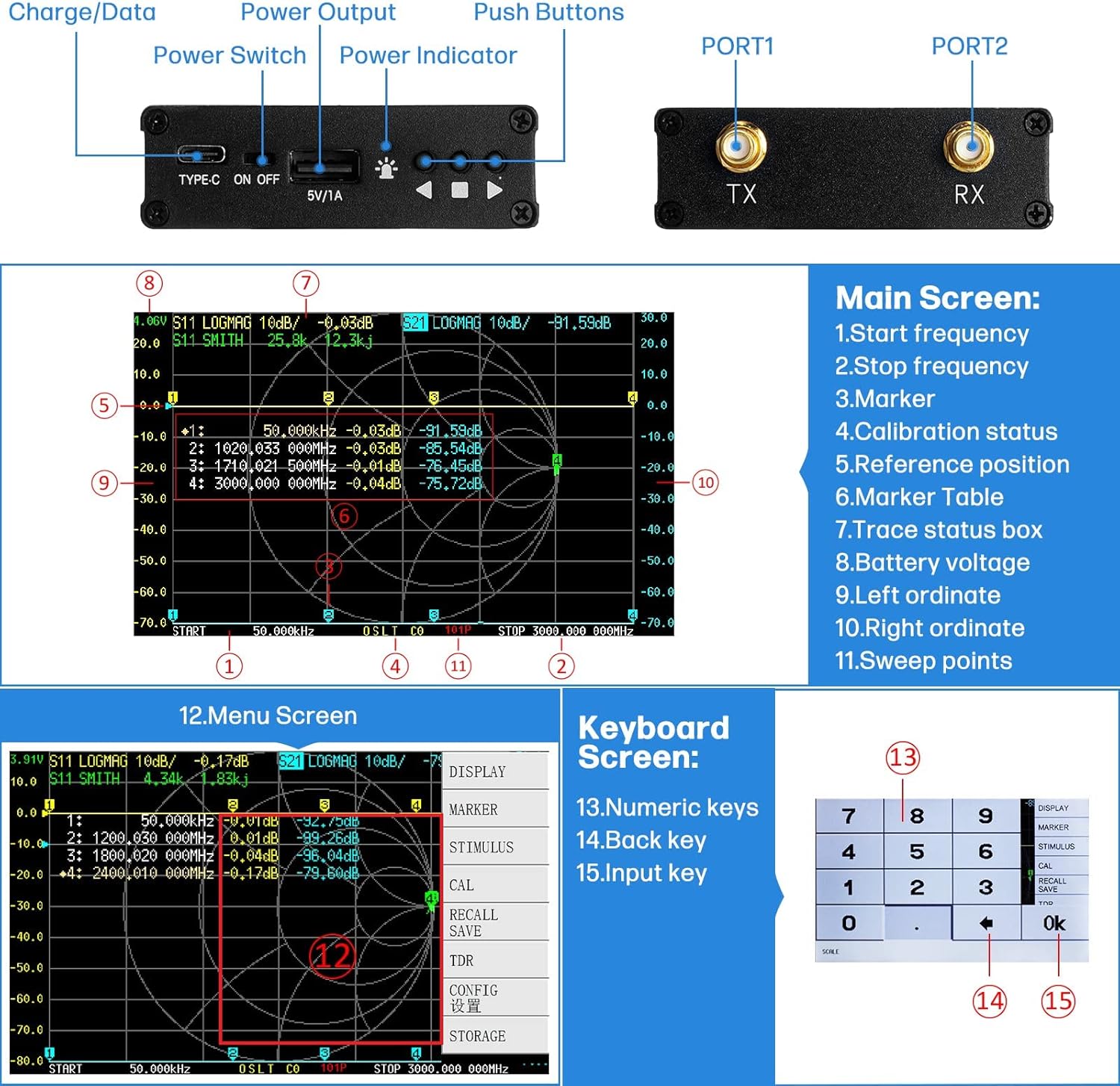

• [Product Improvements] The NanoVNA-F V2 has been updated based on NanoVNA-F to the latest firmware 0.4.0, and the trading page is compatible with Nanovna-F. It can measure S parameter, SWR voltage standing wave ratio, phase map, group delay, Smith graph, RETURN, POLAR, LINEAL, etc

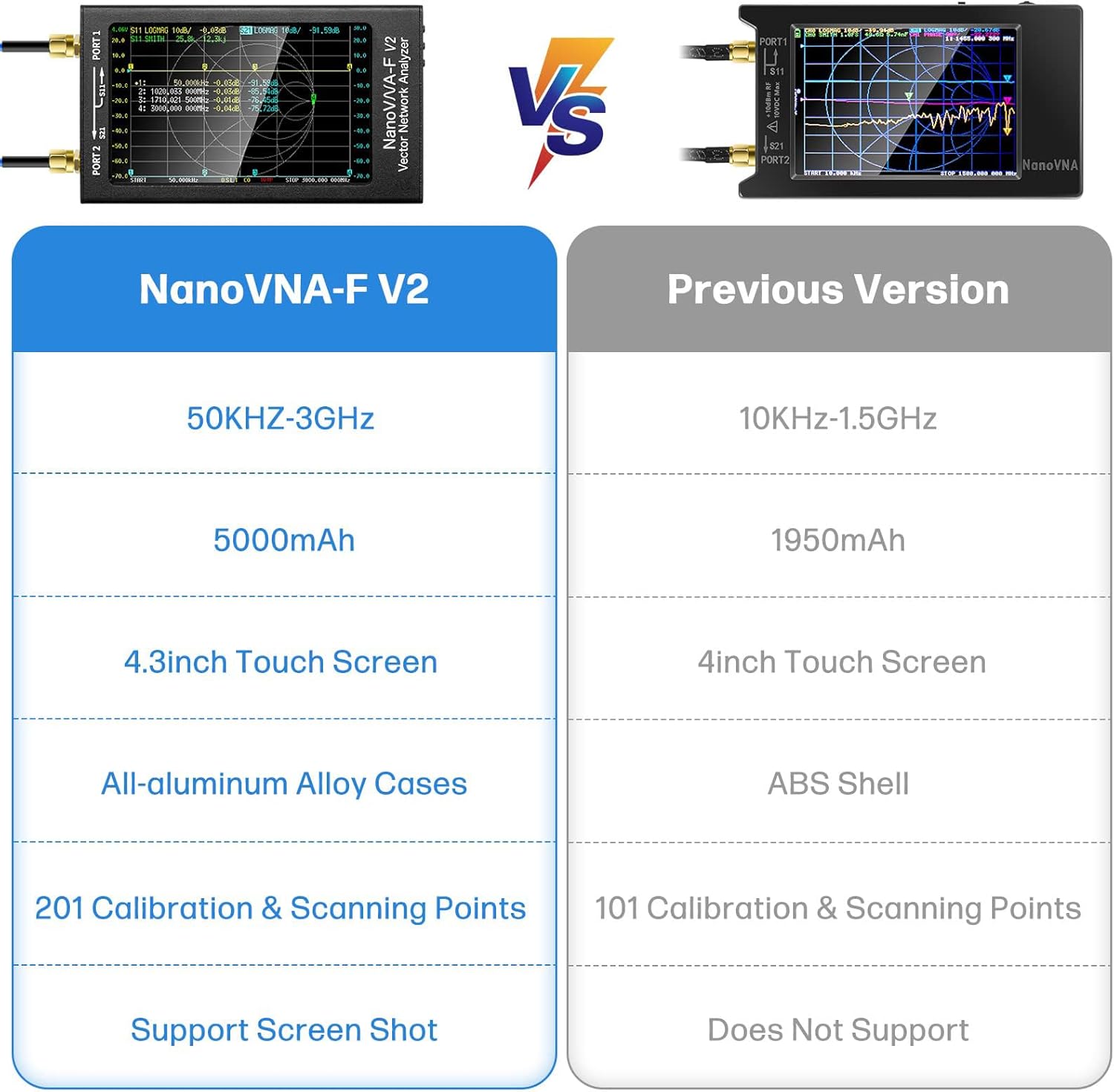

• [Improved Frequency Range] The measurement range of NanoVNA-F V2 is 50KHz-3GHz, which is larger than the previous version (the previous one is 10KHz-1.5GHz). TX/RX method can measure full S11 and S21 parameters, S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50 dB (1.5 GHz), 40 dB (3 GHz)

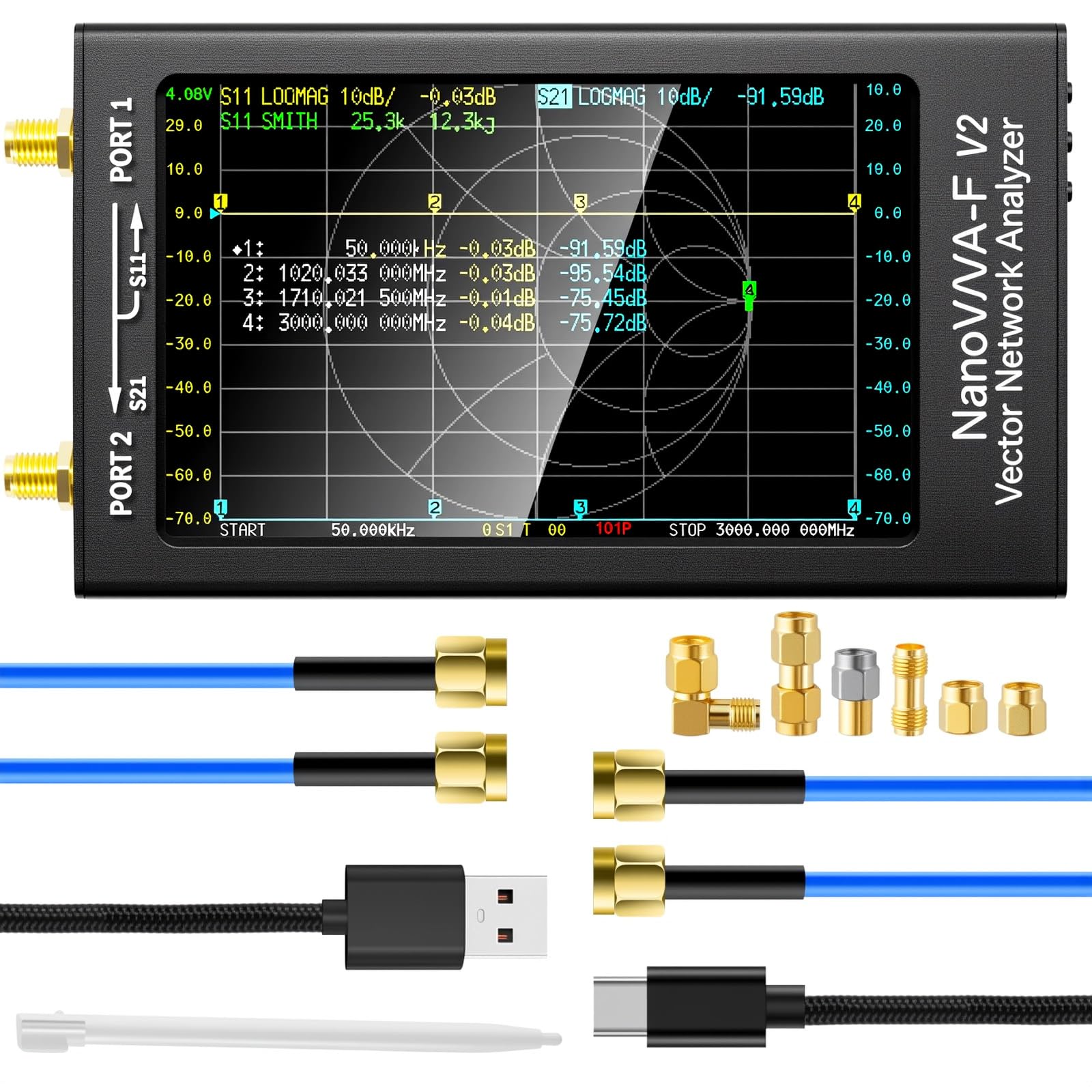

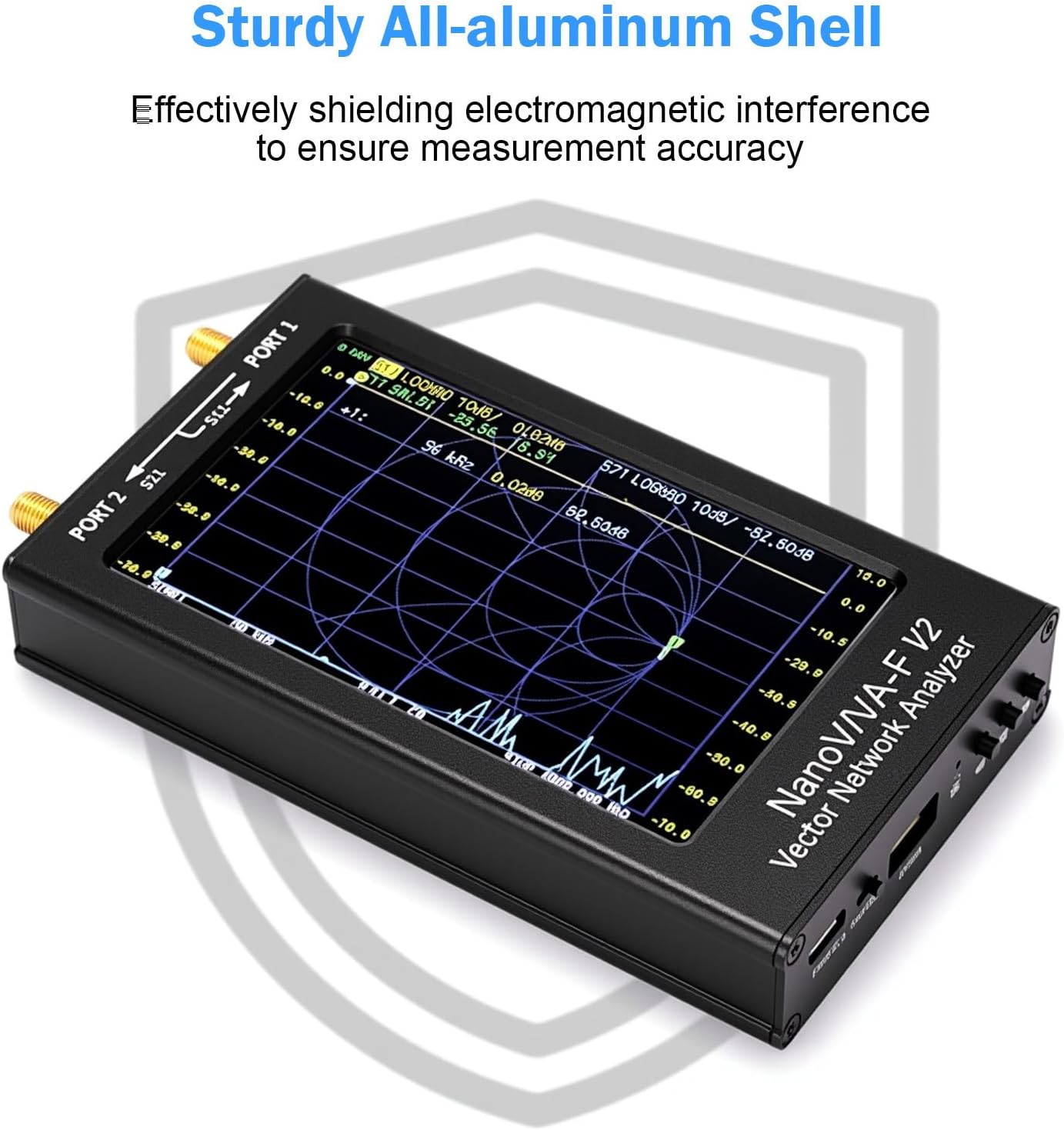

• [New Design] Anterna analyzer uses aluminum alloy housing, which is strong and durable, and can effectively protect electromagnetic interference to ensure measurement accuracy. The radio frequency interface is SMA, which is convenient for connecting various types of measurement

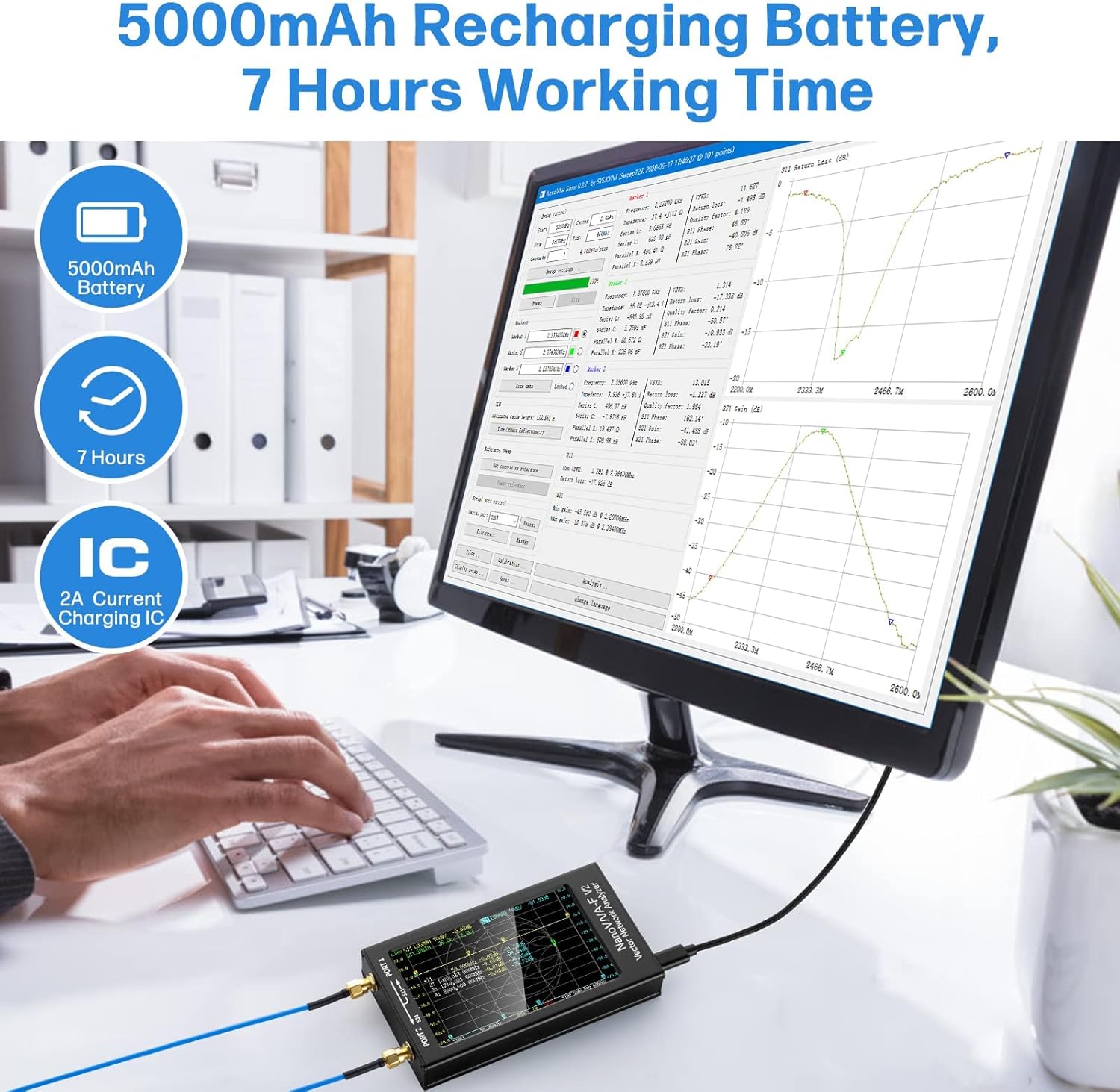

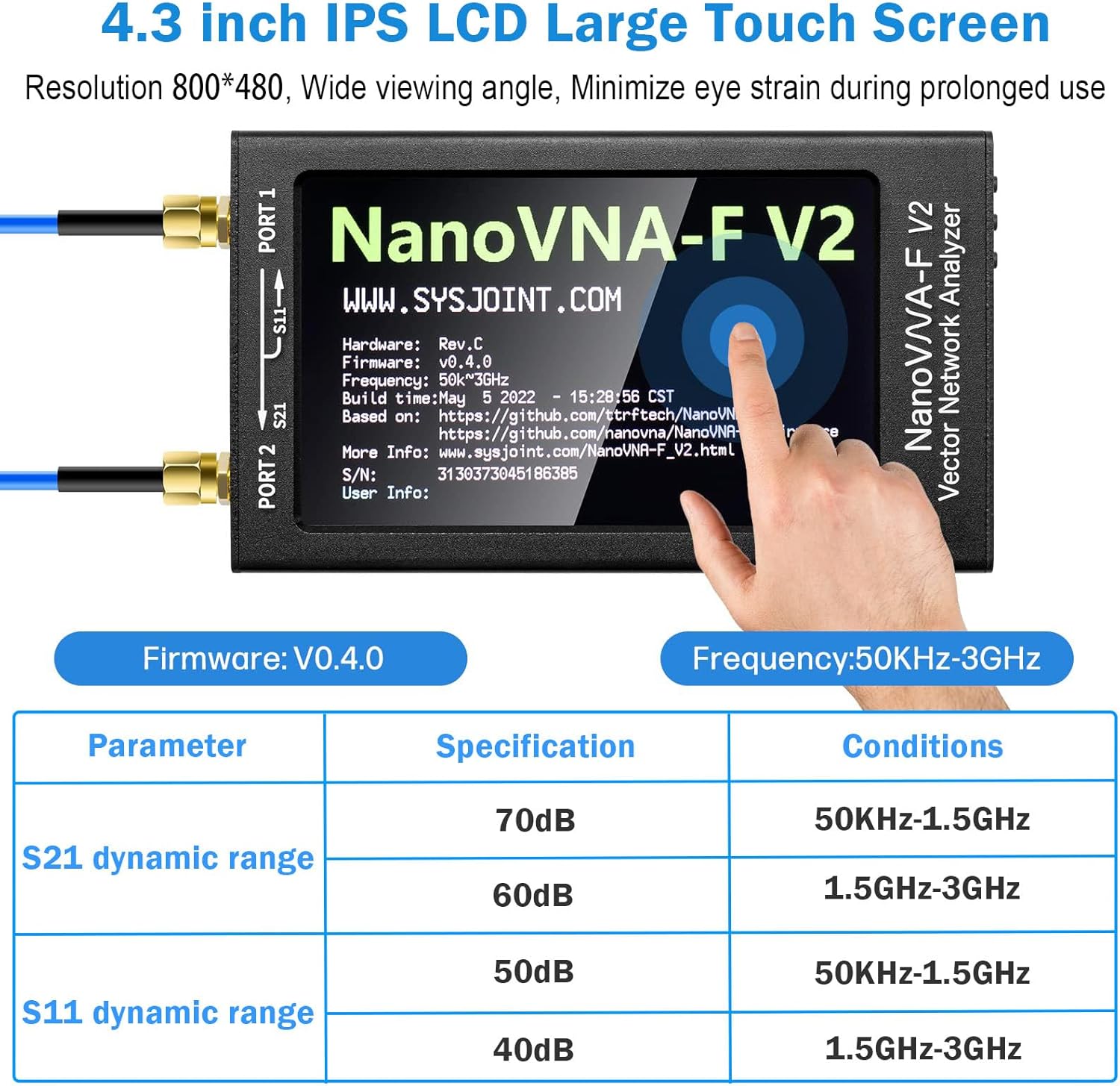

• [4.3-inch Screen & 5000mAh Battery] The vector network analyzer adopts a 4.3-inch IPS TFT LCD display and resistive touchscreen with a resolution of 800*480 and a wide viewing angle. It upgrades to 5000mAh large capacity lithium batteries and has a longer standby time, up to 7 hours. Use 2A large current charging IC, charging time is shorter. As a plug-in, the built-in 5V output is for charging Android phones

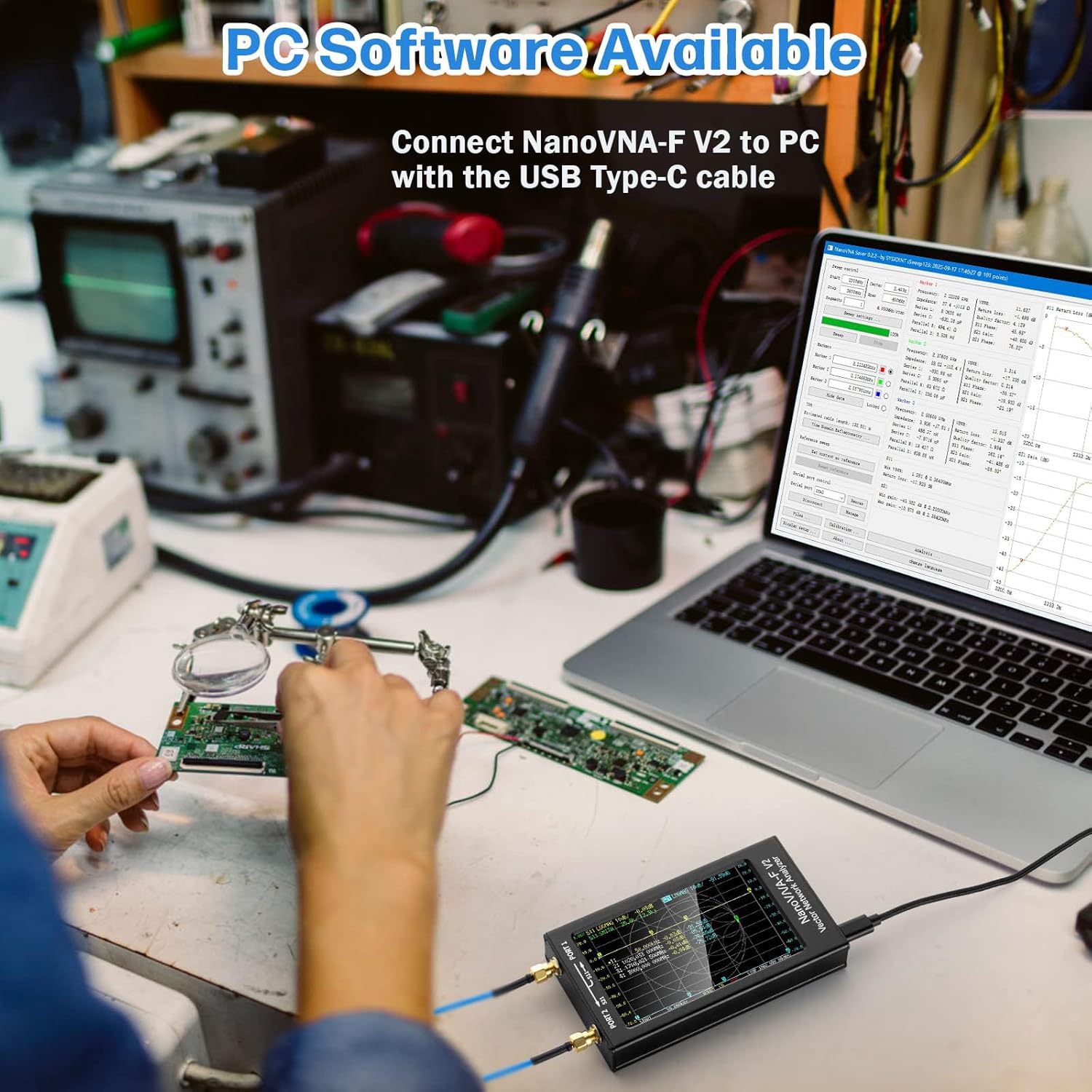

• [Controlled by PC and Android Phone] With NanoVNA Saver PC software, you can connect to the NanoVNA and extract data to view on a computer and save to Touchstone files. We can export Touchstone (snp) files for various simulation and radio design software via PC software. Only supports Android mobile phones
• [Other Powerful Functions]: Not only can you upgrade the program from virtual USB disk, but also can switch to a power switch with stronger and better operating feeling.

مشخصات محصول:

• Brand: ‎AURSINC
• Producer: ‎AURSINC
• Model: ‎NanoVNA-F V2
• Product dimensions: ‎22 x 10.92 x 2.79 cm; 426.38 grams
• Stacks: ‎1 Lithium Ion batteries required. (included)
• Item model number: ‎NanoVNA-F V2
• Item number: ‎NanoVNA-F V2
• Number of articles: ‎1
• Are batteries/batteries included?: ‎Yes
• Batteries/batteries required: ‎Yes
• Cell composition of the cell/battery: ‎Lithium ions
• Item weight: ‎426 g
• Guaranteed software updates up to: ‎unknown
• ASIN: B0BFCZ6CH4
• Average reviews: 4.5 4.5 out of 5 stars 46 ratings 4.5 out of 5 stars
• Position in the Amazon Bestsellers ranking: n. 149,488 in Electronics (View the Top 100 in the Electronics category) n. 16 in SWR Meter
• Shipping Restrictions: Shipping: This item complies with export regulations to selected countries outside the European Union.
• Available on Amazon.it starting from: September 28, 2022
• Antenna: Radio
• Brand: AURSINC
• Color: silver
• Impedance: 50 Ohms
• Producer: AURSINC
• Number of articles: 1
