GPSDO GPSDO انسدادگر انسدادگر GPS یک ساعت 10 مگاهرتز GNSS با تخفیف ساعت GPS 1pps GPS Watch برای رمزگشاهای صوتی

توضیحات

Puleuroy Parameters: Power interface: DC5521 Tension/current of: 12V, 1A (the power adapter is not included, please prepare a power adapter for this) Current of: 650 but during the preheating, 350 but after the stabilization of the output frequency: 10.000000,000mHz ± 0.01Hz outgoing form: exit amplitude: 10dbm thermostatic: 10dbm: Isothemp OCXO 143-141 GPS ماژول: ATGM336H رنگ: مواد سیاه: پلاستیک + فلز محصول واقعی می تواند اختلاف رنگ یا تفاوت کمی را نشان دهد ، که بر روی استفاده از این بسته تأثیر نمی گذارد: 1 x Oslator GPS (آداپتور برق شامل نمی شود) 1 آنتن GPS فقط محتوای بسته فوق ، سایر محصولات شامل نمی شوند. توجه: بازتاب نور و صفحه نمایش متفاوت می تواند باعث ایجاد مقاله رنگ در عکس کمی متفاوت از نسخه واقعی شود. خطای اندازه گیری مجاز کمتر یا بیشتر از 1-3 سانتی متر است.

ویژگی‌ها:

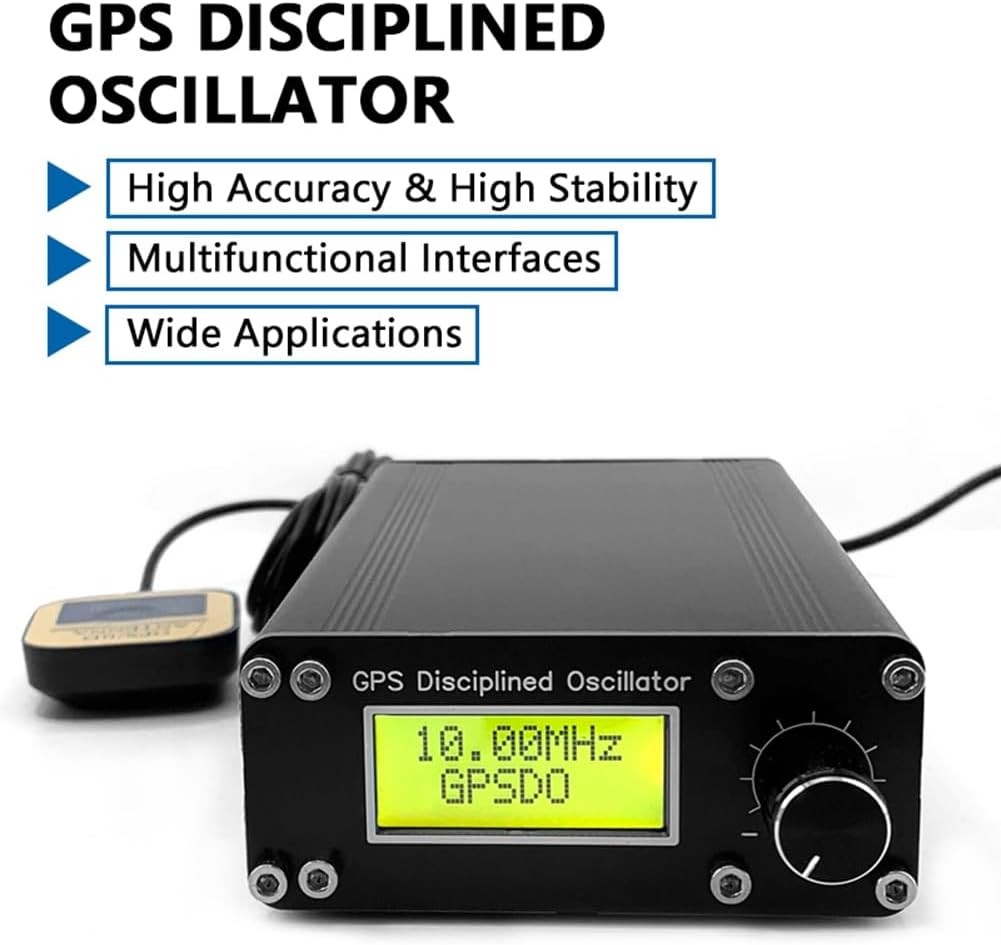

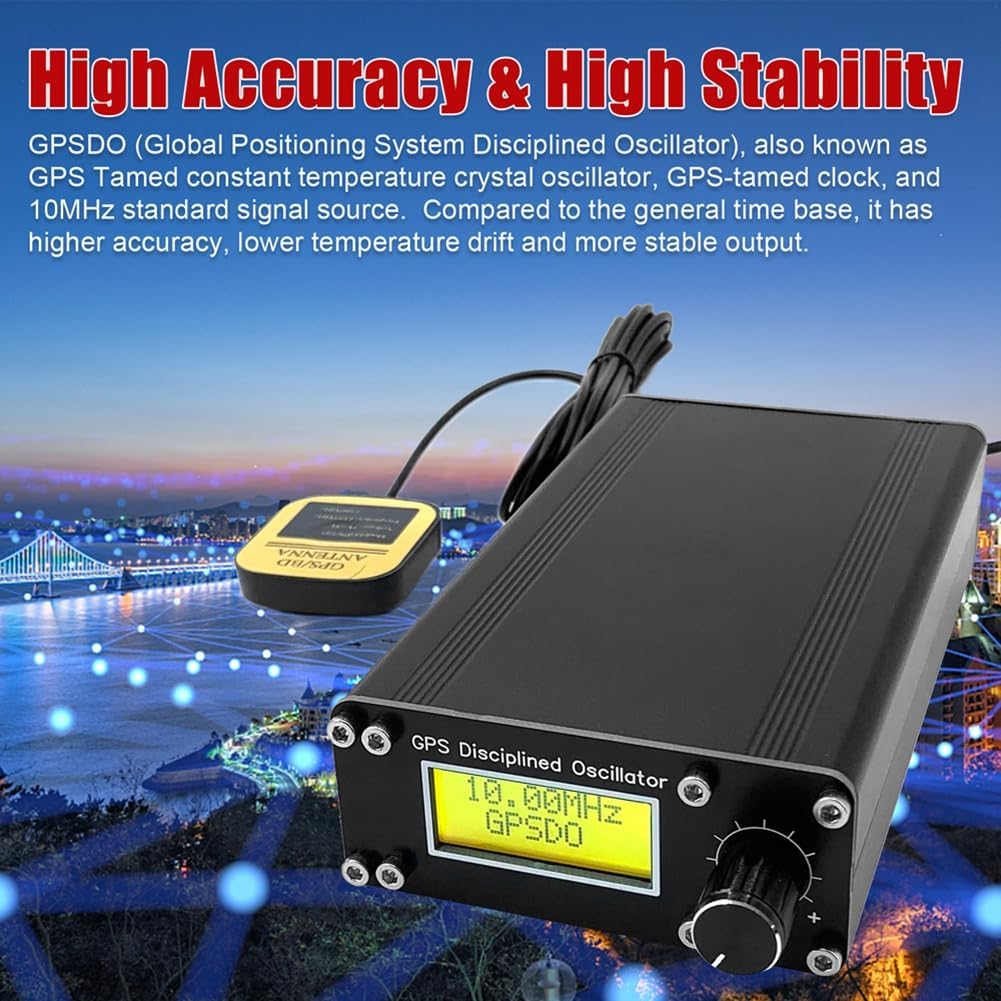

• GPSDO (Global Positioning System Disciplined Oscillator), also known as GPS constantly disciplined temperature oscillator, GPS disciplined watch, standard signal of 10 MHz signal compared to the ordinary temporal base, has greater accuracy, a lower drift of temperature and a more output.
• Use the 1pps signal of the GPS. After the microcontroller compared it, the microcontroller emits 16bit PWM to control the exit precision of the constant temperature. The fine adjustment voltage of the at constant temperature frequency is 0-5V, therefore 1bit PWM can control the output voltage at 0.000076V.

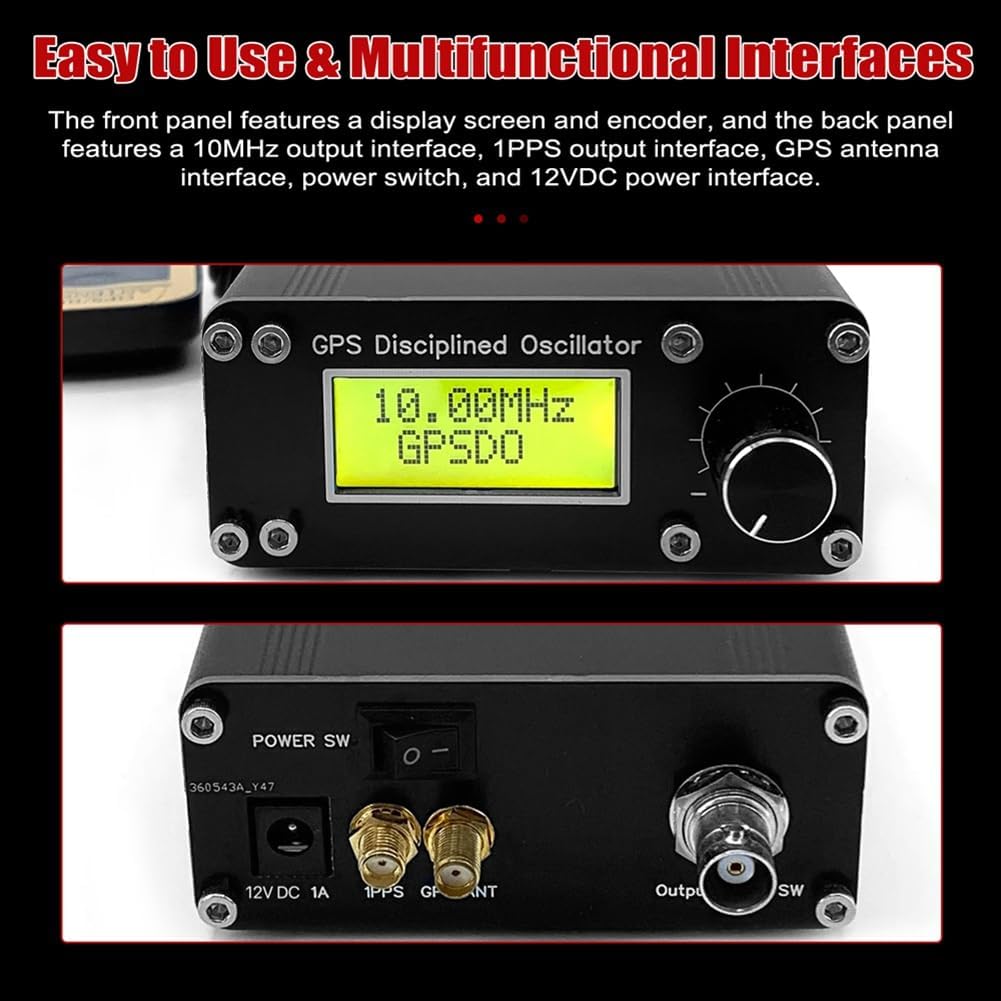

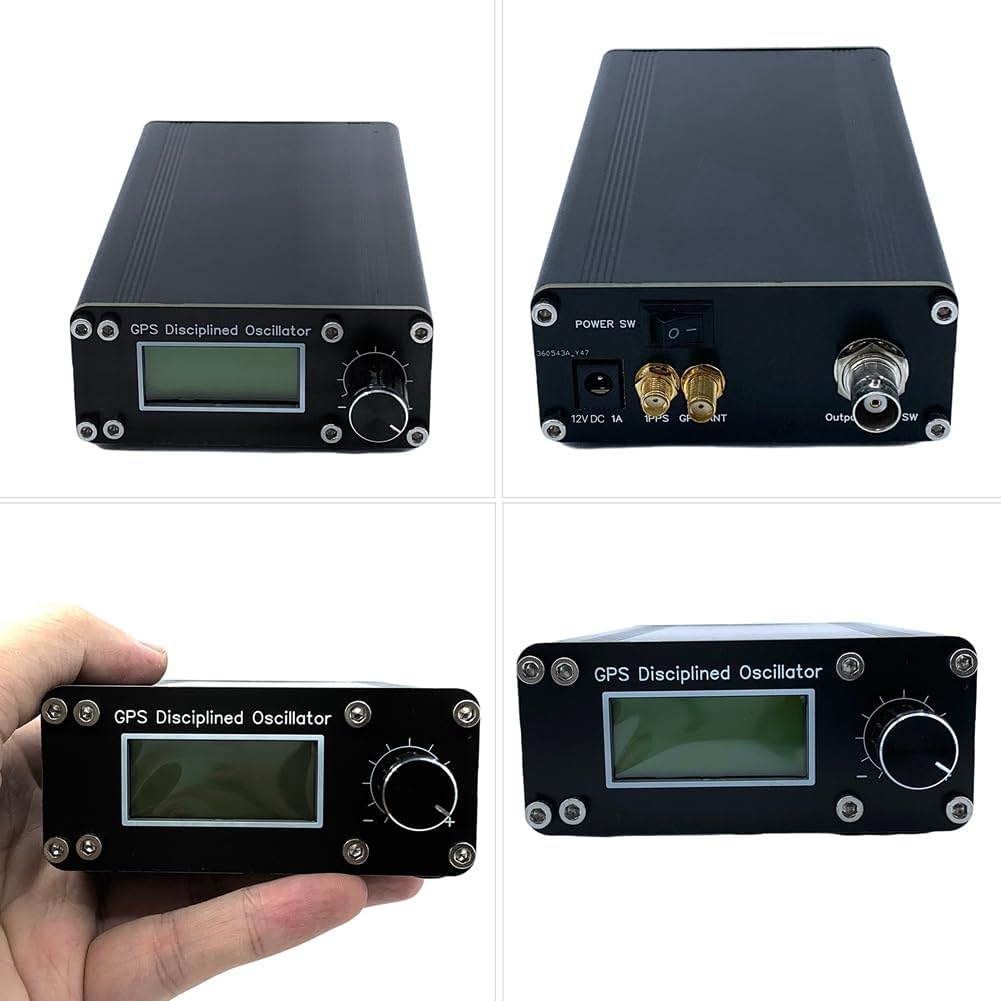

• The length, width and height 'full machine are 150x88x38mm (excluding protrusions). The front panel has viewing screen and an encoder, and the rear panel has a 10 MHz exit interface, a 1 output interface, a GPS antenna interface, a power switch and a 12 V cc power interface.

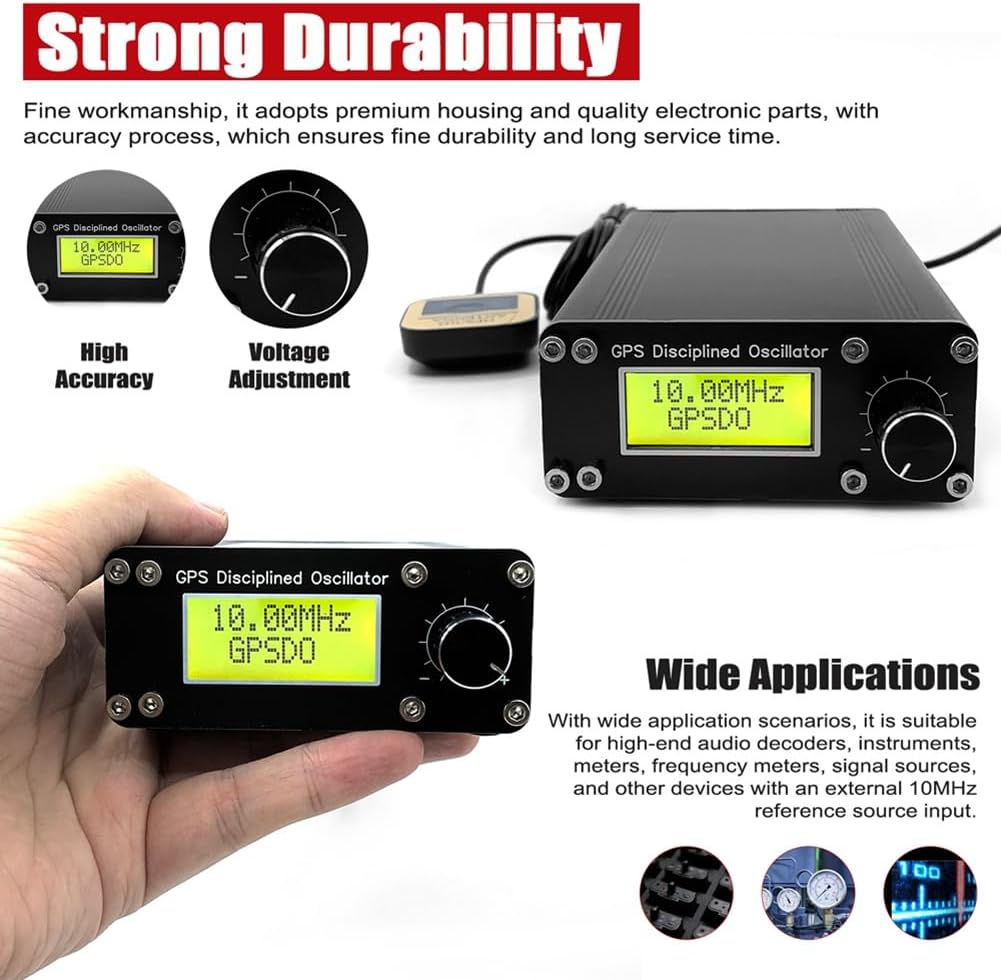

• Applicable scenarios: GPSDO is suitable for high -end audio decoders, tools, measures, frequencyrs, signal sources and other devices with external reference source input from 10 MHz

مشخصات محصول:

• Brand: Foal
• Producer: Foal
• Model: 500795213
• Model name: 500795213
• Product size: 20 x 11 x 8 cm; 496.5 grams
• Article model number: 500795213
• Article number: 500795213
• Number of articles: 1
• Pile/batteries required: No
• Article weight: 497 g
• Guaranteed software updates up to: Unknown
• Donkey: B0DTQ1J6LR
• Average reviews: 4.0 4.0 on 5 stars 1 votes 4.0 out of 5 stars
• Shipping restrictions: Shipping: This article complies with export regulations in countries selected outside the European Union.
• Available on Amazon.it starting from: January 22, 2025
